Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

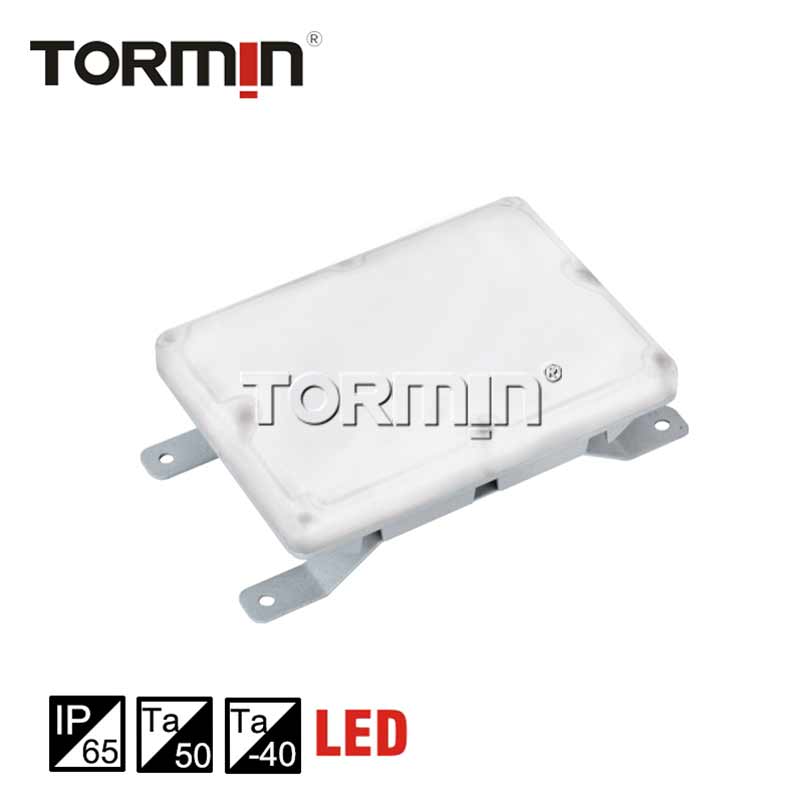

ZY8800
| Product type | LED Area Light |
|---|---|
| Power options | 6 / 12 W |
| Catalogue location | PDF page 9 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Suitable for walkways, tunnels, trenches and other indoor lighting.
Characteristics
1. It can save 60% or more on energy than the metal halide lamp.
2. It adopts domestic brand power supply with AC and DC wide voltage constant power, power factor above 0.98.
3. Using reflective cup design, non-glare, does not cause eye fatigue of workers, improve work efficiency.
4. Housing made of aluminum alloy processing, standard parts with 304 stainless steel, using high-tech anti-corrosion surface treatment technology, suitable for a variety of harsh industrial operating environment.
5. Transparent parts adopt imported optical grade PC, high transmittance, good impact resistance, let lights work in a variety of
harsh environments.
Main specification
|
Item |
Technical Parameters |
|
Input Voltage |
90~264VAC; |
|
18~43VAC/ 18~55VDC |
|
|
Frequency |
50Hz/ 60Hz |
|
Light Source |
LED |
|
Life Time |
50, 000h |
|
CRI |
Ra 75 |
|
CCT |
5000K±250K |
|
Dimension |
180* 130* 65mm |
|
Net Weight |
1Kg |
Ordering reference
|
Ordering reference |
Input Voltage |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
Fluorescent Lamp |
||||||
|
ZY8800-L6 |
90~264VAC |
6W |
600lm |
1.2 |
2~4m |
12W |
|
ZY8800-L12 |
12W | 1200lm |
22W |
|||
|
ZY8800-L6D |
18~43VAC/ 18~55VDC |
6W |
600lm |
1.2 |
2~4m |
12W |
|
ZY8800-L12D |
12W |
1200lm |
22W |
