Mining Lighting

Lighting for underground roadways, working areas and mine facilities. Keep mine-specific equipment approval separate from general industrial lighting.

Discuss Your ProjectExplore product ranges

Plan around your working environment.

A mine contains very different lighting environments: underground roadways and chambers, production working areas, and surface workshops or handling facilities. Equipment intended for an underground mine with firedamp risk is not interchangeable with an industrial gas-area fitting. TORMIN’s DGS and DGC mining ranges provide a starting point for underground applications, while the mine operator’s specification and applicable approval requirements determine whether an exact product can be used.

Underground roadways

Record tunnel dimensions, mounting positions, traffic and obstructions. Plan visibility along the route and at changes in direction or level. Coordinate spacing with supports, cables and other services, and account for dirt accumulation and access for inspection.

Chambers and equipment rooms

Pump rooms, substations and underground service spaces need light on controls and equipment faces, not only the floor. Identify local task positions, emergency arrangements and maintenance access. Confirm the electrical supply and cable-entry requirements for each location.

Mining working areas

Changing geometry, nearby equipment and mechanical exposure affect placement and protection. Identify the working surface, mounting structure and likely sources of impact or vibration. Any lighting arrangement must fit the mine’s operating and inspection procedures.

Surface workshops and handling areas

Assess surface buildings and yards separately. General industrial products may be reviewed for non-hazardous workshops, but dust or gas hazards still require a formal classification. Do not extend an underground product approval—or an ordinary industrial rating—to another environment without checking its scope.

What to confirm before selecting a light.

Use these requirements to build a project-specific specification.

Mine approval
State the mine type, jurisdiction and operator’s approval requirements. Request current mine-specific documentation for the exact model; an industrial ATEX or IECEx reference alone does not establish underground mine acceptance.
Electrical system
Confirm actual supply voltage, tolerances, frequency and the mine’s connection requirements. Do not infer the allowable supply solely from a number in the model name.
Mechanical and environmental exposure
Provide moisture, dust, ambient temperature, vibration and impact conditions. Check mounting security, cable protection and inspection access with the mine’s requirements.
Visibility and upkeep
Provide tunnel geometry, equipment positions and task locations. Agree lighting criteria and account for contamination, cleaning and maintenance in the proposed layout.

Product ranges to review.

Start with the application below, then open the product for its specifications and available literature.

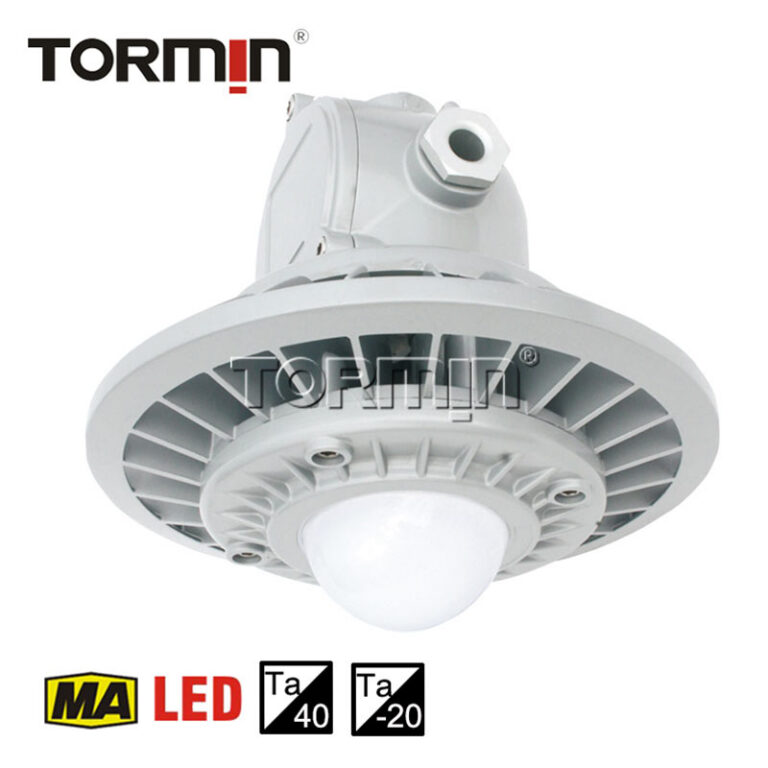

DGS20 / DGS30 / DGS45 · 127L(C) — LED mining tunnel light

DGS20 / DGS30 / DGS45 · 127L(C)

LED mining tunnel light

The source lists underground tunnels, chambers, substations and pump rooms, with ring and bracket mounting options. Confirm the exact model designation, supply and current mining approval.

View specifications

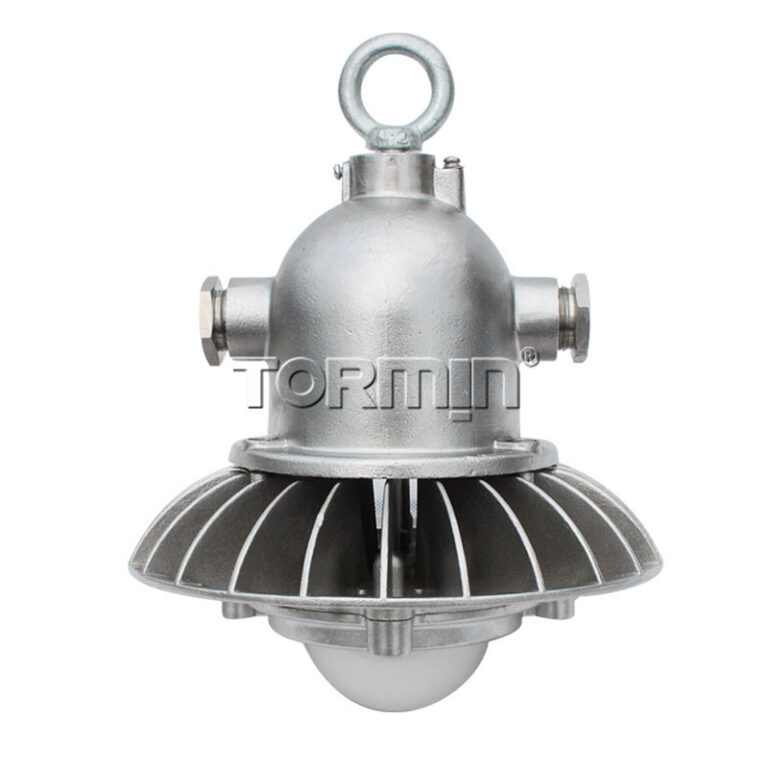

DGC30/127L(A) — LED mining working-area light

DGC30/127L(A)

LED mining working-area light

The literature describes a mining working-surface application and stainless-steel construction. Review the mounting, electrical data and mine-specific certificate before specifying it.

View specifications

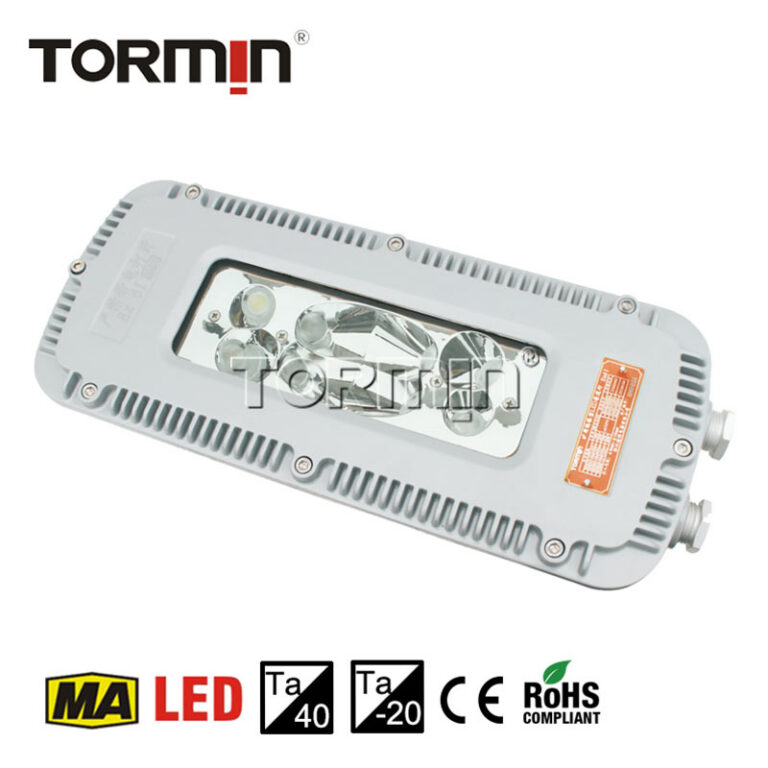

DGS 127L(A) Series — LED mining tunnel light

DGS 127L(A) Series

LED mining tunnel light

An additional range listed for underground tunnel and chamber lighting. Compare the current variant specifications and local approval requirements with the project’s equipment schedule.

View specifications

The source catalogue describes mining applications; current mine approvals have not been independently verified here. Request the applicable certificates and operator acceptance for the exact model before purchase or underground installation.

Browse all lighting products

A better brief. A more useful quotation.

Send the information below with your enquiry. If a detail is not yet available, identify it as an open requirement so it can be clarified before final selection.

  • Mine type, country and mine-operator approval requirements
  • Tunnel sections or working-area drawings, equipment and mounting positions
  • Supply details and required connection and cable-entry arrangements
  • Dust, methane or other hazard information and environmental conditions
  • Lighting criteria, quantities, documentation needs and project schedule

Discuss Your Mining Requirements

Email your brief to sales@tormin-lighting.com

Your application questions, answered.

Can an industrial Group II explosion-proof light be used underground?

Do not treat it as a replacement for mine-specific equipment. Underground mines susceptible to firedamp use a different equipment-group context, and local mine rules and operator acceptance also apply. Selection must be made against the actual mine requirements and certificate scope.

Does the model name confirm the operating voltage?

No. Use the current specification, nameplate and installation instructions for the exact delivered model. If catalogue values or naming appear inconsistent, obtain written clarification before ordering or connecting the product.

Are these products replacements for cap lamps or escape lighting?

They are presented here as fixed mining-lighting ranges. Personal cap lamps, emergency escape provision and fixed working illumination have different purposes. Specify those systems separately under the mine’s requirements.

What is needed before a mining-light quotation can be finalised?

Provide the mine and jurisdiction, required approvals, exact supply, mounting arrangement and quantities. Confirm current certification and the operator’s acceptance process early, so the quotation is tied to an identified configuration rather than a generic range name.
