Application
1. The product is suitable
for use in power station, steel industry, workshop and other places.
Characteristics
1. Radiators adopt comprehensive self-loop design,
long-term suitable for operating environment with high temperature and high
humidity. Upper and lower ventilation fin structure, no dust.
2. Variety of light distribution, variety of installation
types, an effective solution to beautify workshop and device platform.
3. It adopts imported light source, no dark zone in
light spot, no ghosting, can save 60% or more on energy than theMetalHalideLamp.
4. AC and DC wide voltage constant power supply,
power factor up to 0.98.

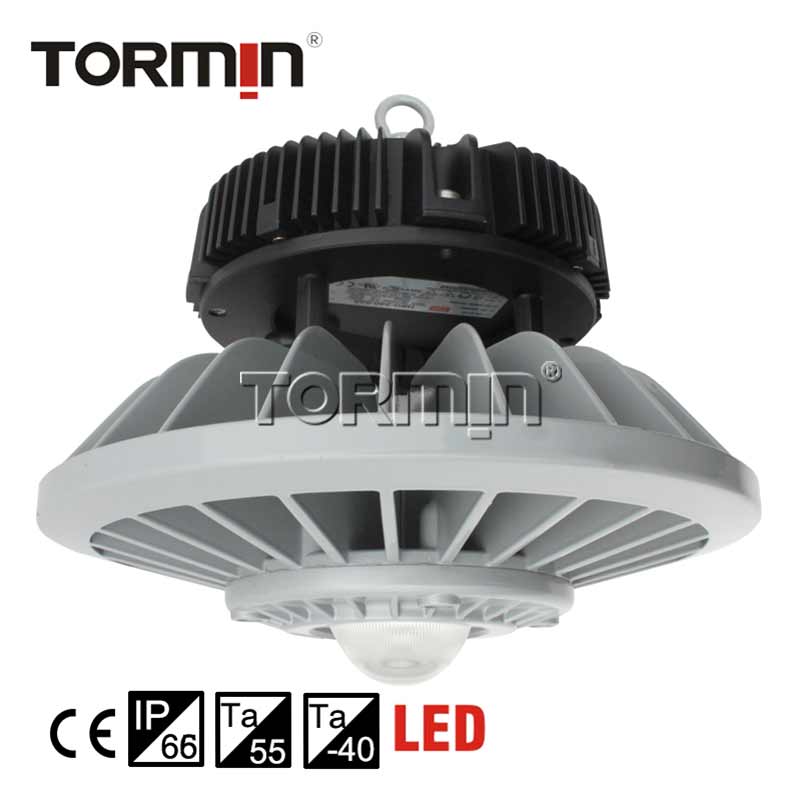

5. LED high bay light fixture can achieve quickly
scene replacement of light source and electrical without welding.
6. According to user needs,achieve a variety of
intelligent control.
Main specification
|
Item |
Technical Parameters |
|
Input voltage range |
90~305VAC |
|
Frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
Life time |
50,000h |
|
CRI |
Ra 70(80 Optional) |
|
5000K(3000K/4000K optional) |
|
|
Dimension |
φ230* 175mm(60W) |
|
φ230* 180mm(80W) |
|
|
φ300* 235mm(100~200W) |
|
|
Net Weight |
4.8Kg(Max) |
Ordering reference
|
Ordering reference |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
Metal Halide Lamp |
|||||
|
ZY8502-L60 |
60W |
>7600lm |
0.4~1.75 |
8~10m |
150 |
|
ZY8502-L80 |
80W |
>9000lm |
8~12m |
175W |
|
|
ZY8502-L100 |
100W |
>11200lm |
250W |
||
|
ZY8502-L120 |
120W |
>12900lm |
10~15m |
>250W |
|
|
ZY8502-L150 |
150W |
>16400lm |
400W |
||
|
ZY8502-L200 |
200W |
>23000lm |
400W~600W |
||
|
Note: |
|||||
