Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

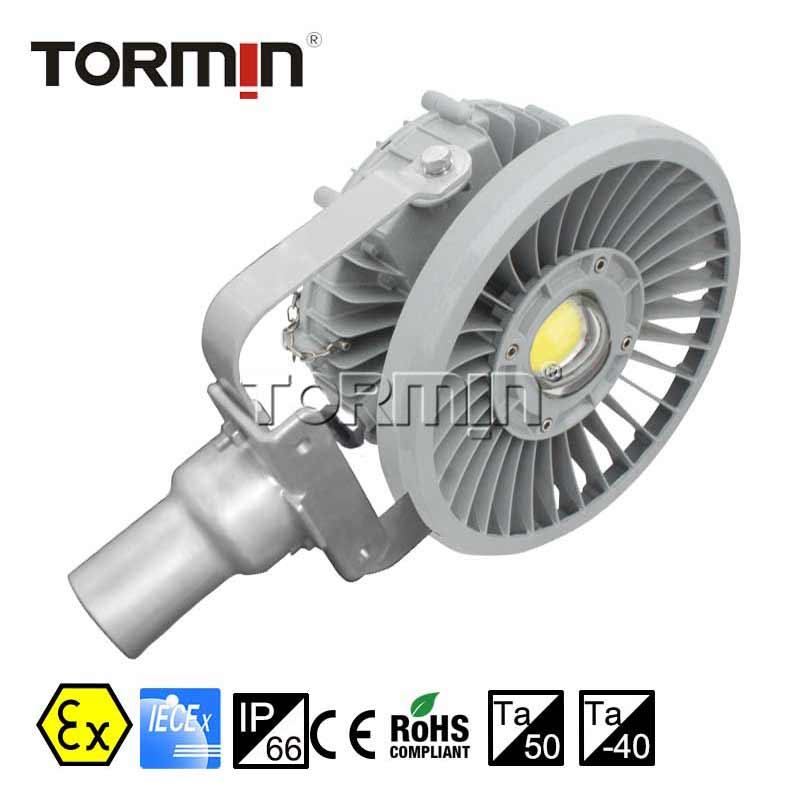

BC9700
| Product type | Explosion-Proof High-Power Light |
|---|---|
| Power options | 50 / 60 / 80 / 100 / 120 / 150 / 200 W |
| Catalogue location | PDF page 5 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
Oil wharf, petrochemical plant, chemical plant, pharmaceutical factory and other dangerous road lighting tank.
Characteristics
1. A full range of high conductivity material
accelerate convection cooling structure, effective guarantee long-term use in
high temperature environments.
2. Variety of light distribution, variety of
installation types, an effective solution to beautify workshop and device
platform.
3. It adopts imported light source, no dark spot,
energy-saving is 60% more than Metal Halide Lamp.
4. AC-DC wide voltage driver, power factor above 0.98.
5. The rapid replacement of power without welding can
be realized.
6. The adjustable locking device on the bracket can
tightly fix the lamp to any desired angle, making the lamp resist to harsh
vibration.
7. It is made using aluminum housing, all exposed
fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface
treatment technology, suitable for hazardous working areas.
8. Windward area is only 30% of the traditional lamp,
suitable for high-altitude winds area.
9. Intelligent control functions can be realized.
Main Specification
|
Item |
Technical |
|
Input voltage range |
90~305VAC |
|
Input frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
Service life |
50, 000 h |
|
CRI |
Ra 70(80 Optional) |
|
CCT |
5000K (3000K/4000K Optional） |
|
Cable entry |
M20,M25, G3/4″,NPT1/2″,NPT3/4″ |
|
Dimension |
φ300* 202mm |
|
Net weight |
6.3 Kg |

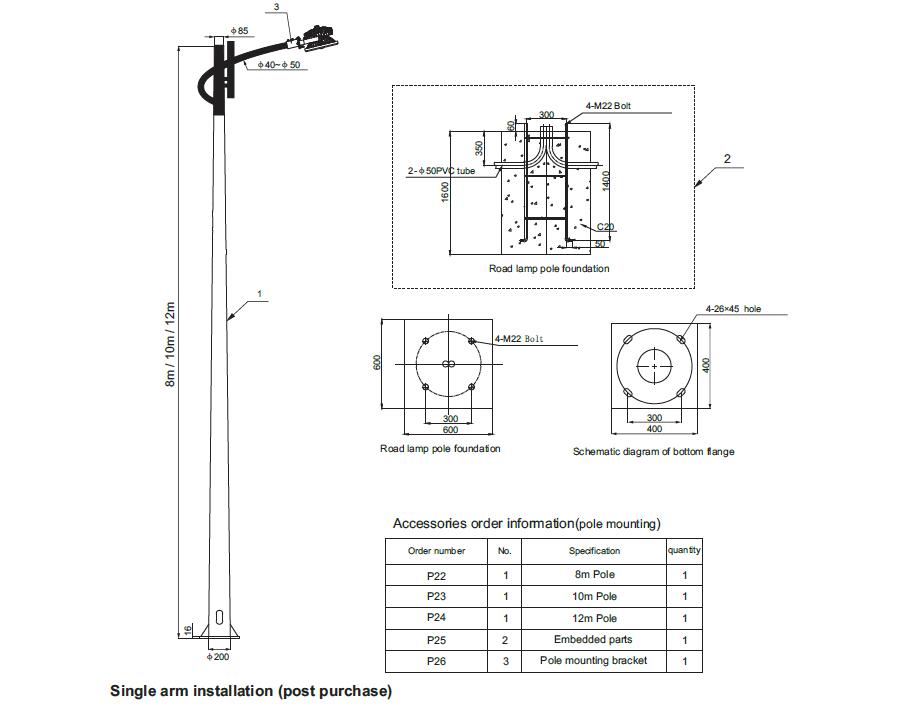

Drawing of dimension (Dimensions in mm)
Ordering
reference
|
Ordering reference |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
High Pressure Mercury Lamp |
|||||
|
BC9700-L60 |
60W |
>7100lm |
0.7~1.75 |
8~12m |
150W |
|
BC9700-L80 |
80W |
>8600lm |
0.7~1.75 |
8~12m |
175W |
|
BC9700-L100 |
100W |
>11300lm |
0.7~1.75 |
8~12m |
250W |
|
BC9700-L120 |
120W |
>13000lm |
0.7~1.75 |
8~12m |
>250W |
|
BC9700-L150 |
150W |
>16500lm |
0.7~1.75 |
10~12m |
400W |
|
BC9700-L200 |
200W |
>23000lm |
07~1.75 |
10~12m |
>400W |
