Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.
BHD01A / BHD01B / BHD02
| Product type | Explosion-Proof Junction Boxes |
|---|---|

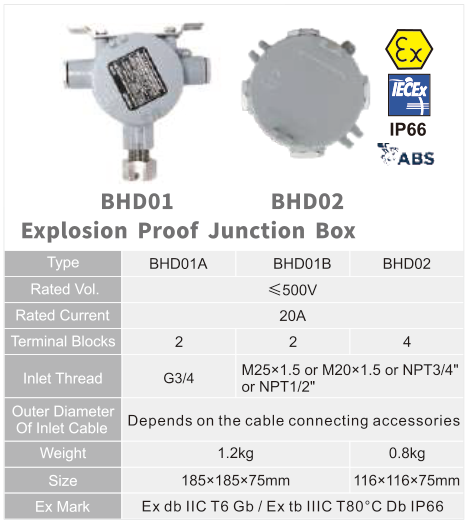

| Catalogue location | PDF page 8 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Used as junction box and mounting element for
lighting equipment installed in explosion and hazardous areas, like
petrochemical plants, chemical plants, pharmaceutical factory, polishing plant,
etc.
Characteristics
1. Explosion-proof junction box has the
characteristics of small volume, light weight, convenient installation, etc.
2. The shell adopts anti-corrosive processing,
standard for the 304 stainless steel material, using high-tech surface anti-corrosion
treatment technology, applicable to all kinds of bad industrial environment.
Technical Specification
|
Item |
Technical |
|
Input voltage range |
≤500V |
|
Input frequency |
50Hz/ 60Hz |
|
Rated Current |
<20A |
|
Outside Diameter |
φ9~φ14mm |
|
Cable Diameter |
0.75~ 2.5mm2 |
|
Net weight |
1 Kg |
Ordering
reference
|
Ordering reference |
Cable entry |
Dimension |
Cable entry quantity |
Drop cable quantity |
|
BHD01A |
M25* 1.5(Two hole); G3/4”(One |
185*185*75mm |
2 |
1 |
|
BHD01B |
M25* 1.5(Two hole); G3/4”(One |
185*185*75mm |
2 |
1 |
