Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

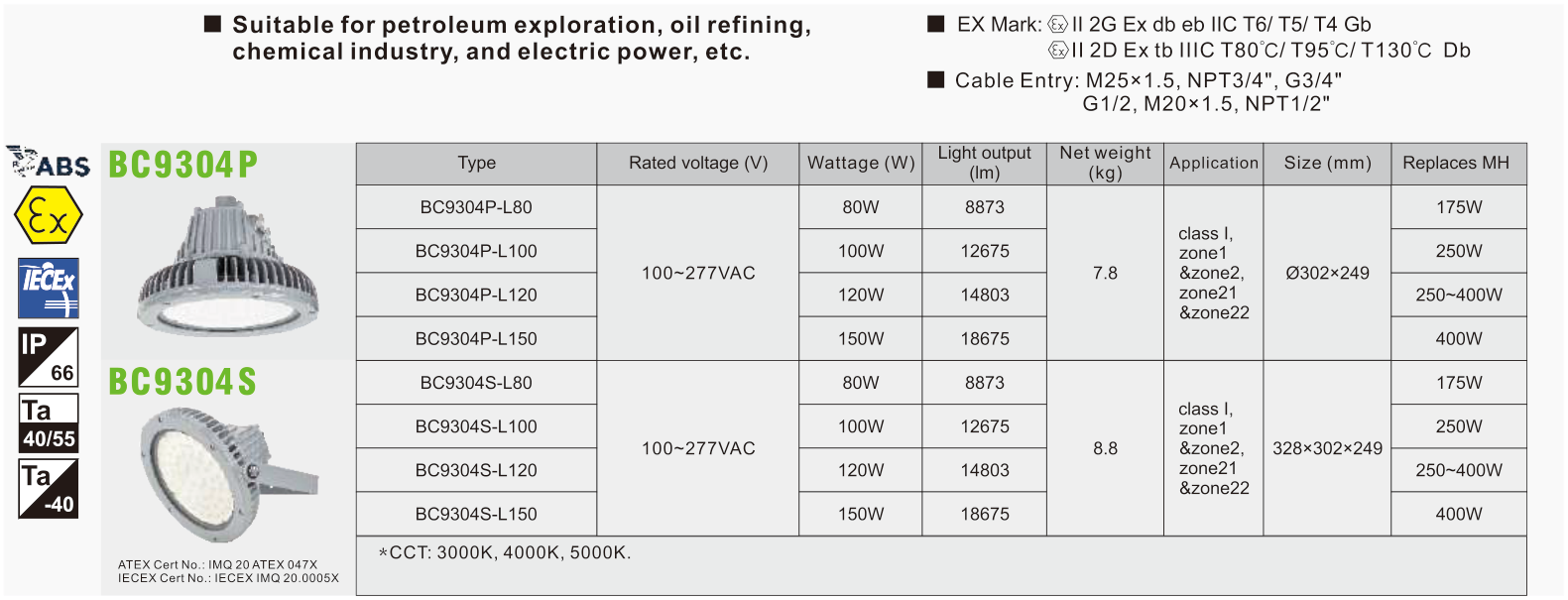

BC9304P / BC9304S
| Product type | Explosion-Proof High Bay Light |
|---|---|
| Power options | 80 / 100 / 120 / 150 W |
| Catalogue location | PDF page 4 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. This product is widely used for work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and electric power;
2. Applicable to places with high humidity and corrosion protection;
3. Applicable to explosive gas or dust environment in Zone 1, Zone 2 or Zone 21, Zone 22;
4. Suitable for IIA, IIB, IIC explosive gas environment;
5. Suitable for temperature group T1~T6/ T5 group;
6. Applicable ambient temperature is -40℃~40℃/55℃.
Characteristics
■ The radiator adopts fin structure design, which can be suitable for high temperature and high humidity working environment for a long time;
■ A variety of installation methods and the same shape can effectively solve the problem of aesthetic appearance in the same area;
■ The lamp adopts international brand light source, no color spots, dark areas, ghosting, etc., the whole light efficiency is as high as approx
120lm/W, which is more than 60% energy-saving compared with the metal halide lamp;
■ The power supply adopts first-line brands such as Meanwell and Inventronics, and its reliability and life span rank first in the industry;
■ The protection level reaches IP66, which can effectively resist heavy rain.
Technical Specification
| Item | Technical Parameters |
| Input voltage | 90~305VAC |
| Rated frequency | 50Hz / 60Hz |
| Rated wattage | 80~120W |
| Light source | LED |
| Life time | 100,000hrs |
| CRI (Ra) | 70 (80 optional) |
| CCT | 5000K (3000K/ 4000K optional) |
| Leading-in cable diameter | Φ8mm~Φ12mm (G3/4″, M25, NPT3/4″) |
|
Φ6mm~Φ10mm (G1/2, M20, NPT1/2″) (attached with reducer union) |
|
| Net weight | 6.8Kg |
| Size | Φ302X249mm |

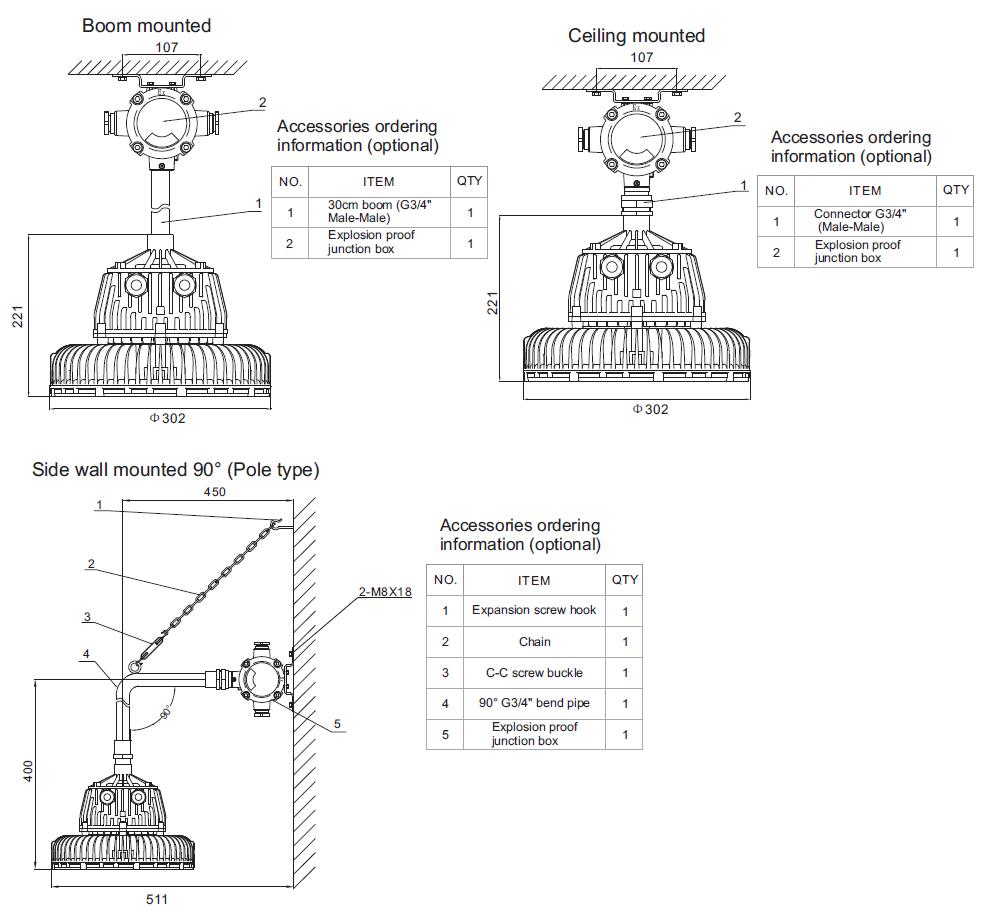

Drawing of dimension (Dimensions in mm)
Ordering reference
| Model number |
Rated wattage(W) |
Light output (lm) |
Space height ratio |
Mounting Height(m) |
Replace to Metal Halide Lamp |
| BC9304P-L80 | 80 | 8873 | 1.4 | 8~12m | 175W |
| BC9304P-L100 | 100 | 12675 | 8~12m | 250W | |
| BC9304P-L120 | 120 | 14803 | 10~15m | >250W | |
Bracket mounted type BC9304S series are also optional
