Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

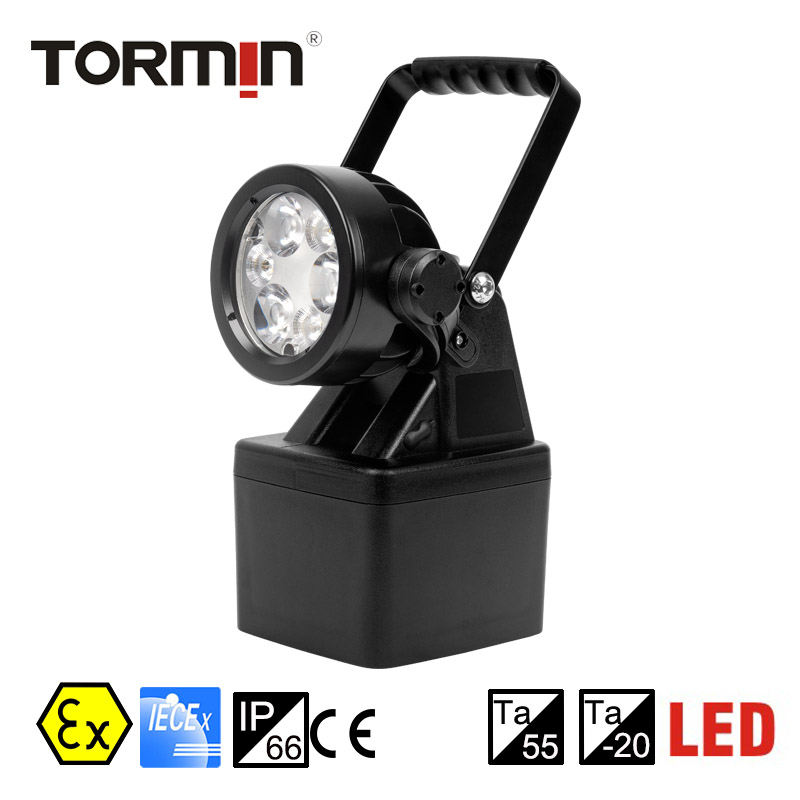

BW6610B
| Product type | Explosion-Proof Work Light |
|---|---|
| Power options | 3 W |
| Catalogue location | PDF page 8 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
This product is suitable for construction work, accident rescue, line, equipment inspection, maintenance and various flammable and explosive places as mobile lighting
Characteristics
1. Free switching between spotlight and floodlight modes. When the lamp is working, press and hold the switch for 3 seconds to switch;
2. The bottom of the lamp has a strong adsorption function, which can be easily adsorbed on all kinds of pipes and cabinets. The adsorption force is much higher than similar products.
3. The irradiation angle can be adjusted arbitrarily within the range of 135 degrees.
4. Using CREE light source, strong light power of 13 watts;
5. Stainless steel 304 externally coated silicone rubber handle, longtime carrying will not hurt your hands;
6. The protection level reaches IP66, which can effectively resist heavy rain;
7. When the lamp is off, long press for two seconds to automatically detect the power, flash 5 times for full power, flash 4 times for 80% power, and so on.
Main specification
|
Specification |
Unit |
Values |
|
|
Rated Voltage |
V |
22.2 |
|
|
Rated Power |
W |
13W |
|
|
Rated Capacity |
mAh |
2600 |
|
|
Light Output(high/ low) |
lm |
1500/ 900 |
|
|
Continuous Runtime |
High |
h |
8 |
|
Low |
15 |
||
|
Recharge Time |
h |
≥6 |
|
|
Service Life Of Battery |
Recycled |
≈1000 |
|
|
Dimension |
mm |
151X 131X 272 |
|
|
Net weight |
Kg |
1.5 |
|
