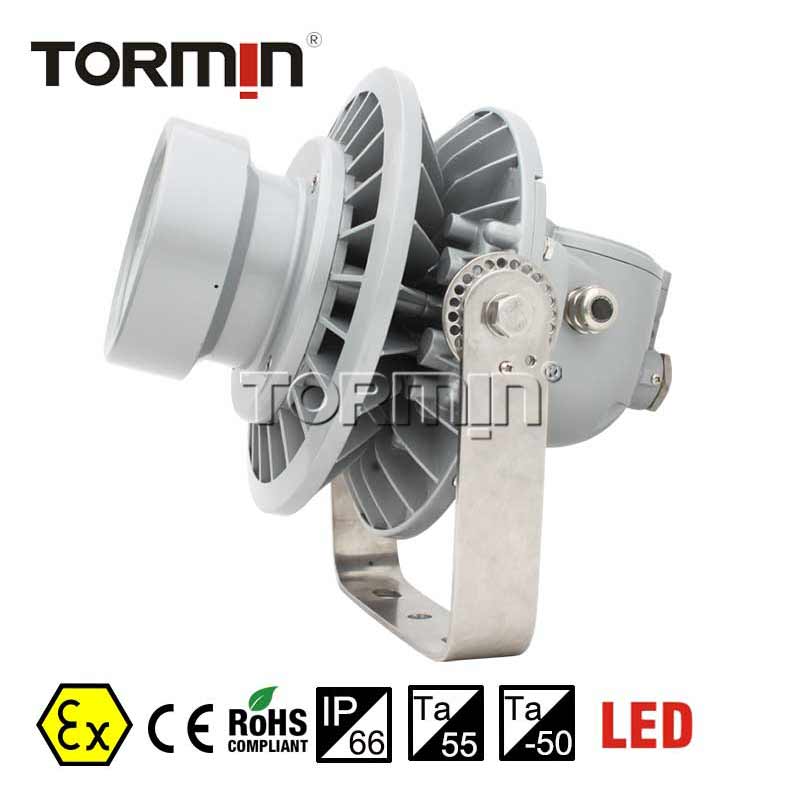

ATEX LED anti-corrosion bracket mounting light source super brightness frameproof lighting Spotlight

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

1. Ideal to be used in the oilfield, chemical
industry, offshore drilling platform, steel industry, petroleum, etc.

2. Gas explosive environment: Group IIA, IIB, IIC.

Characteristics

1. Flameproof lighting is made using special aluminum
housing, all exposed fasteners and bracket adopt 304 stainless steel. Using
high-tech anti-corrosion surface treatment technology, LED explosion proof
fixtures are suitable for long-term highly corrosive environment of offshore
oil platforms, oil drilling platform, chlor-alkali, vulcanization cyanide, etc.

2. A full range of high conductivity material
accelerate convection cooling structure, effective guarantee long-term use in
high temperature environments.

3. Variety of light distribution, variety of
installation types, an effective solution to beautify workshop and device
platform.

4. The shell is made of high-tech surface coating
technology, corrosion resistant, waterproof and dust proof, suitable for harsh
environments.

5. Optoelectronic integrated technology，no dark spot, no ghosting, the average light
efficiency of whole lamp can reach to 100 lm/W, energy saving is 60% more than
Metal Halide Lamp.

6. Taiwan Meanwell power supply or same quality power
supply, power factor above 0.98, high reliability and long time service life.

7. Independent wiring chamber, safe and easy
installation and maintenance.

8. Quick replace light source without welding.

9. Intelligent control functions can be realized.(
Dimming: 1-10VDC, PWM, Carrier, DALI, etc.)

Main Specification

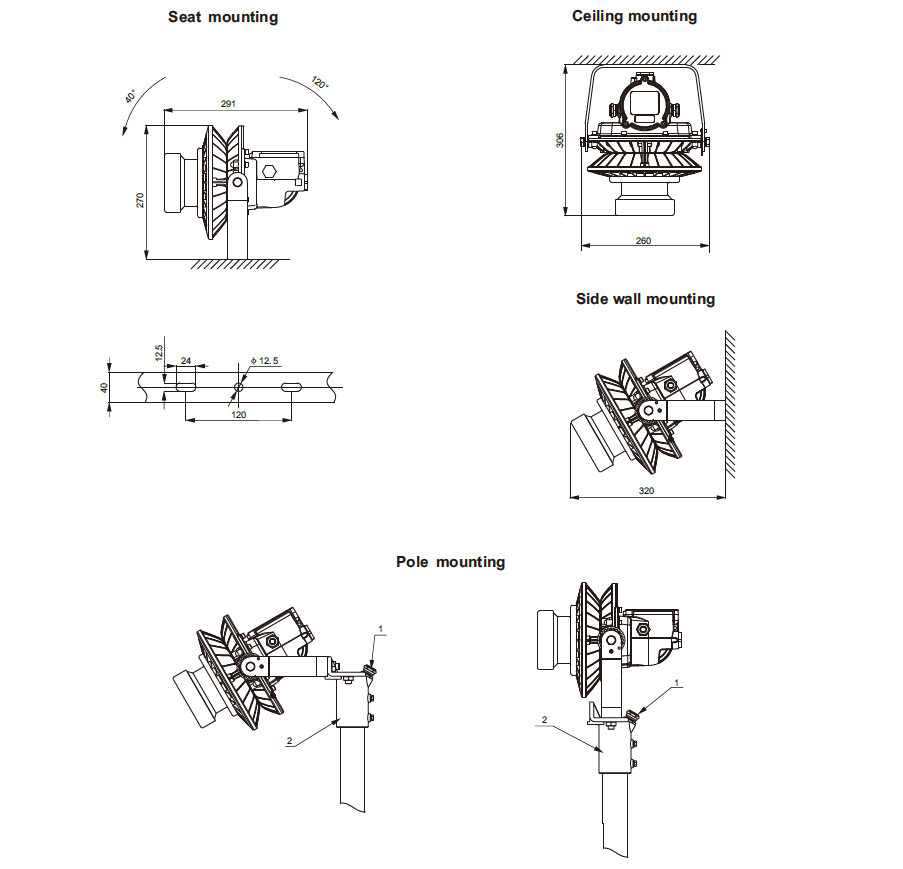

Drawing of dimension (Dimensions in mm)

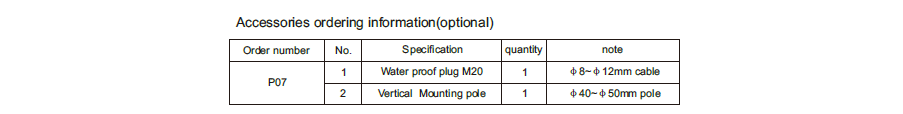

Ordering
reference

Downloads

• BC9306S-spotlight-catalog-en-010938
