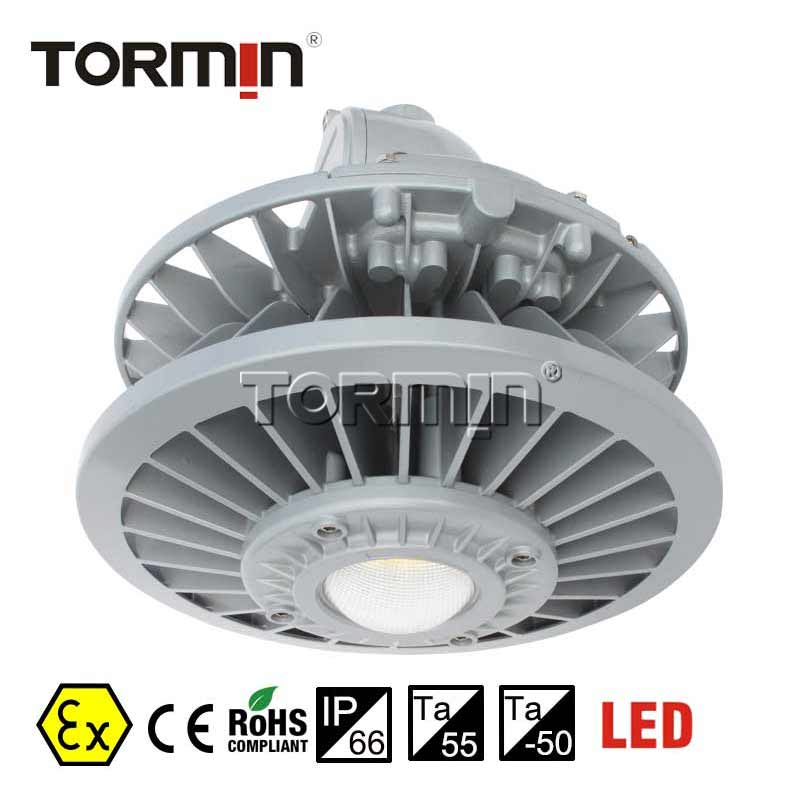

IP66 gas station LED 200W explosion proof high bay Lamp spray booth lighting

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

1. Ideal to be used in the oilfield, chemical
industry, offshore drilling platform, steel industry, petroleum, etc.

2. Gas explosive environment: Group IIA, IIB, IIC.

Characteristics

1. Explosion proof lighting LED is made using special
aluminum housing, all exposed fasteners and bracket adopt 304 stainless steel.
Using high-tech anti-corrosion surface treatment technology, gas station lamp
is suitable for long-term highly corrosive environment of offshore oil platforms,
oil drilling platform, chlor-alkali, vulcanization cyanide, etc.

2. A full range of high conductivity material
accelerate convection cooling structure, effective guarantee long-term use in
high temperature environments.

3. Variety of light distribution, variety of
installation types, an effective solution to beautify workshop and device
platform.

4. The shell is made of high-tech surface coating
technology, corrosion resistant, waterproof and dust proof, suitable for harsh
environments.

5. Optoelectronic integrated technology, no dark spot,
no ghosting, the average light efficiency of whole lamp can reach to 120 lm/W,
energy saving is 60% more than Metal Halide Lamp.

6. Taiwan Meanwell power supply or same quality power
supply, power factor above 0.98, high reliability and long time service life.

7. Independent wiring chamber, safe and easy
installation and maintenance.

8. Quick replace light source without welding.

9. Intelligent control functions can be realized. (Dimming:
1-10VDC, PWM, Carrier, DALI, etc.)

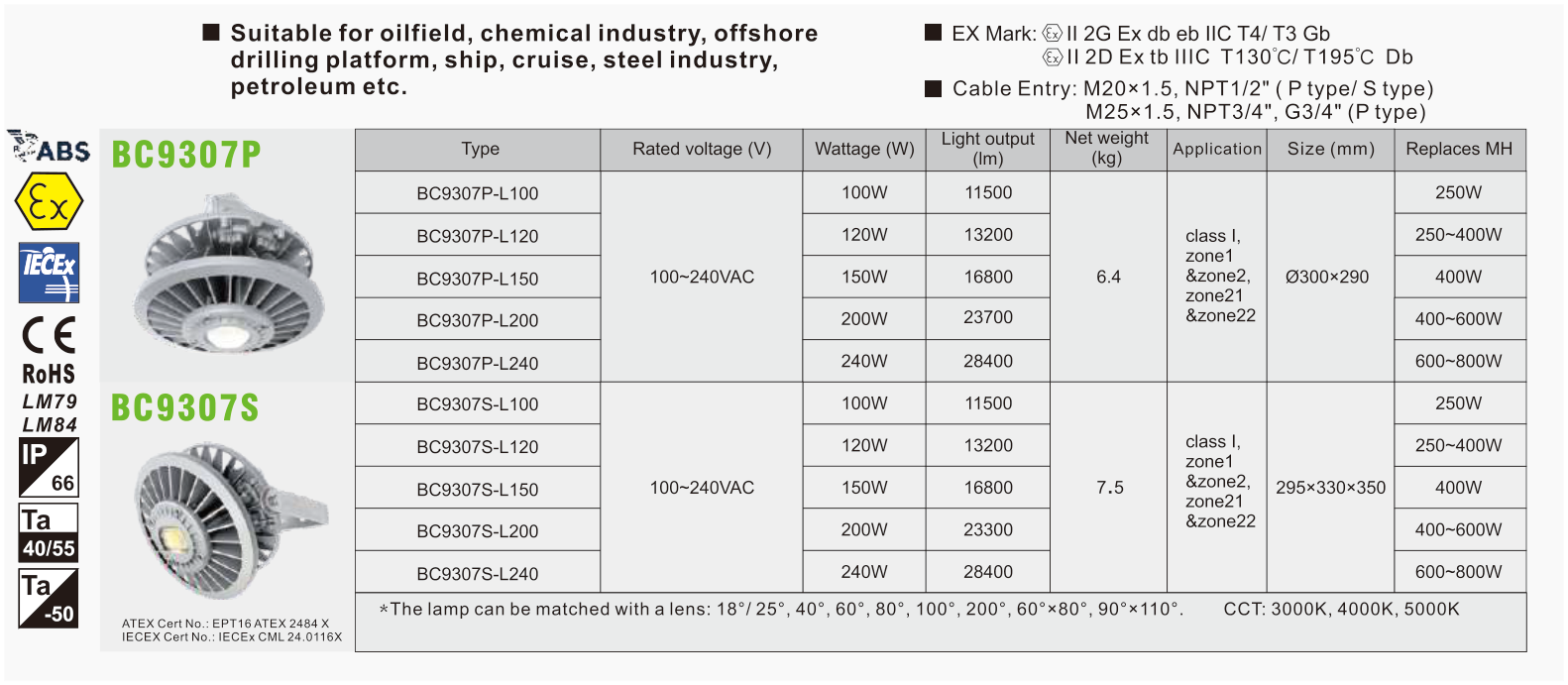

Technical Specification

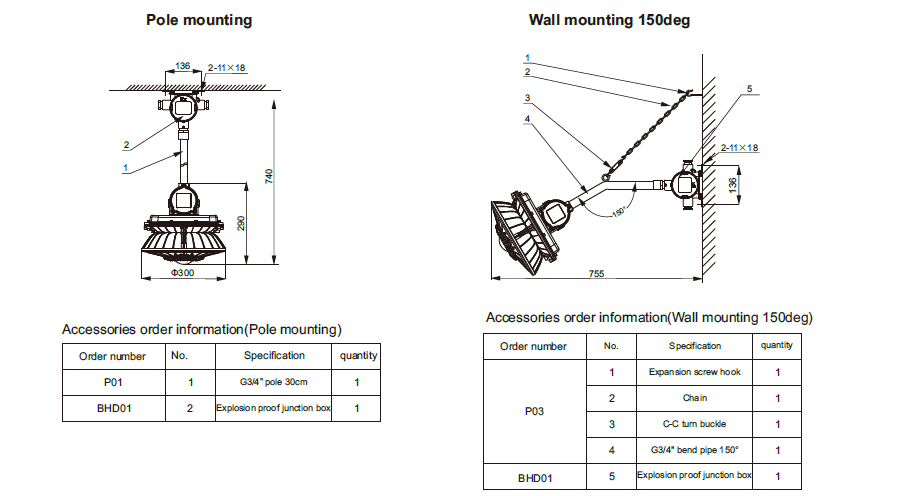

Drawing of dimension (Dimensions in mm)

Ordering
reference

Downloads

• BC9307P-catalog-en-011013
