Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

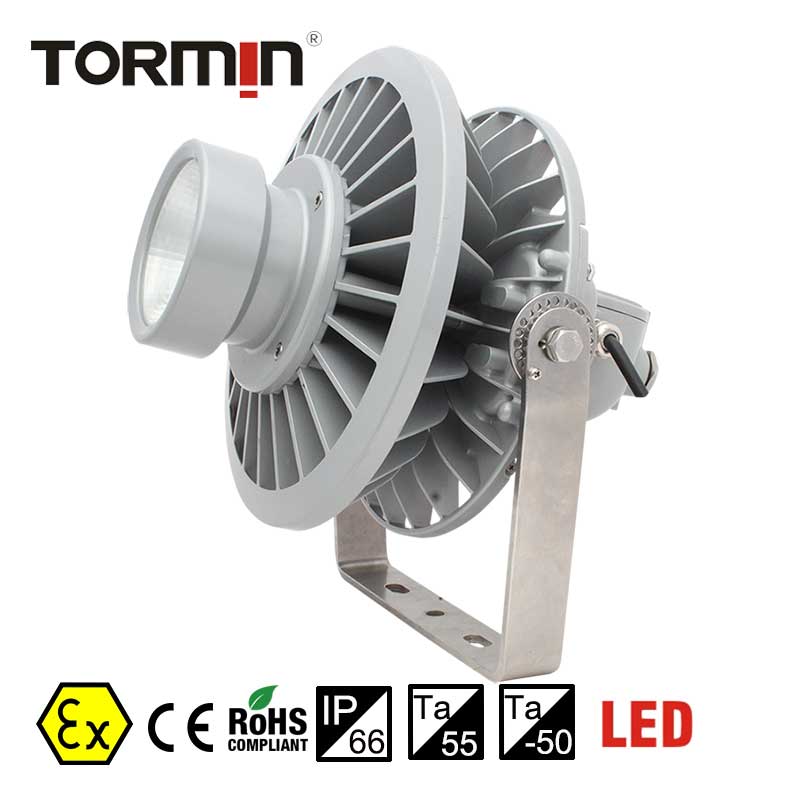

BC9307P / BC9307S
| Product type | Explosion-Proof High Bay Light |
|---|---|
| Power options | 100 / 120 / 150 / 200 / 240 W |
| Catalogue location | PDF page 4 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Ideal to be used in the oilfield, chemical
industry, offshore drilling platform, steel industry, petroleum, etc.
2. Gas explosive environment: Group IIA, IIB, IIC.
Characteristics
1. LED spot light is made using special aluminum
housing, all exposed fasteners and bracket adopt 304 stainless steel. Using
high-tech anti-corrosion surface treatment technology, explosion LED lighting
is suitable for long-term highly corrosive environment of offshore oil
platforms, oil drilling platform, chlor-alkali, vulcanization cyanide, etc.
2. A full range of high conductivity material
accelerate convection cooling structure, effective guarantee long-term use in
high temperature environments.
3. Variety of light distribution, variety of
installation types, an effective solution to beautify workshop and device
platform.
4. The shell is made of high-tech surface coating
technology, corrosion resistant, waterproof and dust proof, suitable for harsh
environments.
5. Optoelectronic integrated technology，no dark spot, no ghosting, the average light
efficiency of whole lamp can reach to 120 lm/W, energy saving is 60% more than
Metal Halide Lamp.
6. Taiwan Meanwell power supply or same quality power
supply, power factor above 0.98, high reliability and long time service life.
7. Independent wiring chamber, safe and easy
installation and maintenance.
8. Quick replace light source without welding.
9. Intelligent control functions can be realized. (Dimming:
1-10VDC, PWM, Carrier, DALI, etc.)
Technical Specification
|
Item |
Technical |
|
Input voltage range |
90~264VAC |
|
Input frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
Service life (h) |
50,000 |
|
CRI (Ra) |
70(80 Optional) |
|
Color Temperature |
3000K/4000K/5000K |
|
Screw Thread |
G3/4″, NPT3/4″, |
|
Leading-in cable diameter |
φ8mm~φ12mm |
|
Terminals |
Multi-core wire：≤2.5mm2 |
|
Single-core wire：≤4mm2 |
|
|
Dimension |
341* 330* 350mm |
|
Net weight (kg) |
8 Kg |

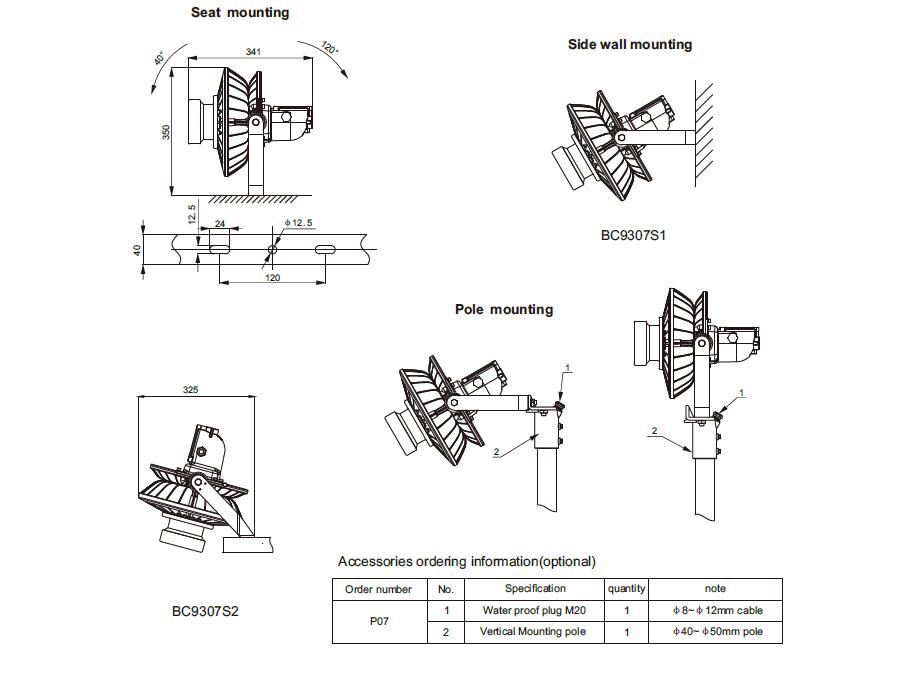

Drawing of dimension (Dimensions in mm)
Ordering
reference
|
Ordering reference |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
High Pressure Mercury Lamp |
|||||
|
100W |
10000lm |
0.7~1.4 |
8~12m |
250W |
|
|
BC9307S-L120-18° |
120W |
11500lm |
>250W |
||
|
BC9307S-L150-18° |
150W |
14600lm |
10~15m |
400W |
|
|
BC9307S-L180-18° |
180W |
17400lm |
>400W |
||
|
BC9307S-L200-18° |
200W |
20400lm |
>400W |
||
|
BC9307S-L240-18° |
240W |
24900lm |
15~25m |
600W~800W |
