Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

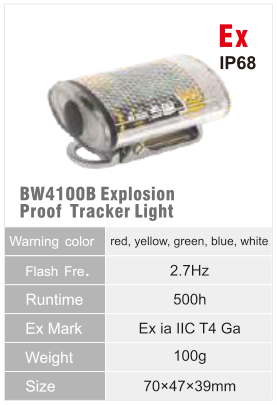

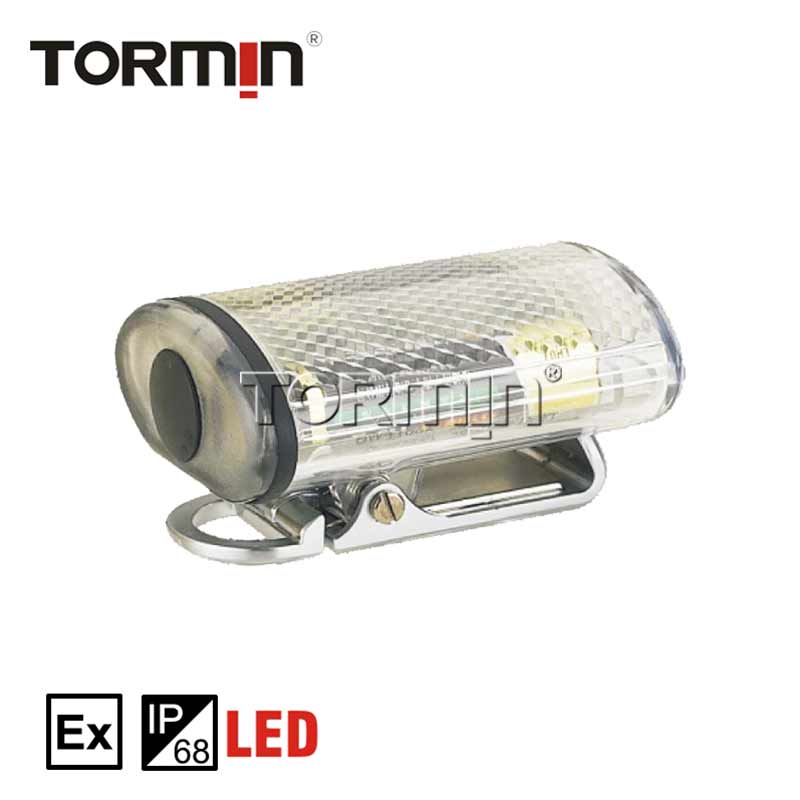

BW4100B
| Product type | Explosion-Proof Tracker Light |
|---|---|
| Catalogue location | PDF page 8 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
It is ideal as a personal indicator to identify the position of workers, it also can serve as signal communication tools in all kinds of the hazardous area such as construction, fire fighting, rescue etc.
Characteristics
1. Intrinsically safe type of protection can be safely used in various flammable and explosive fields (including Zone 0).
2. Waterproof & Drop Resistant: Made of PC material, drop resistant to 1 meter.
3. Runtime: Powered by two AAA battery. The continuous runtime can exceed 500 hours.
4. Flexible&Convenience: Small size, Lightweight, easy to operate. It is magnetic, can be attached to the iron surface.
5. Ambient Temperature: -60℃ ~ +150 ℃.
6. Color Available: The tracker light is available in the following five different colors according to customers requirements: red, blue, yellow, green, white.
Main specification
|
Specification |
Unit |
BW4100B |
|
Rated Voltage |
VDC |
1.5X2 |
|
Current |
μA |
<3 |
|
Flashing Frequency |
Hz |
2.7 |
|
Max Impulse Current |
mA |
80 |
|
Dimension |
mm |
70 x47 x39 |
|
Net Weight |
Kg |
0.1 |
