Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

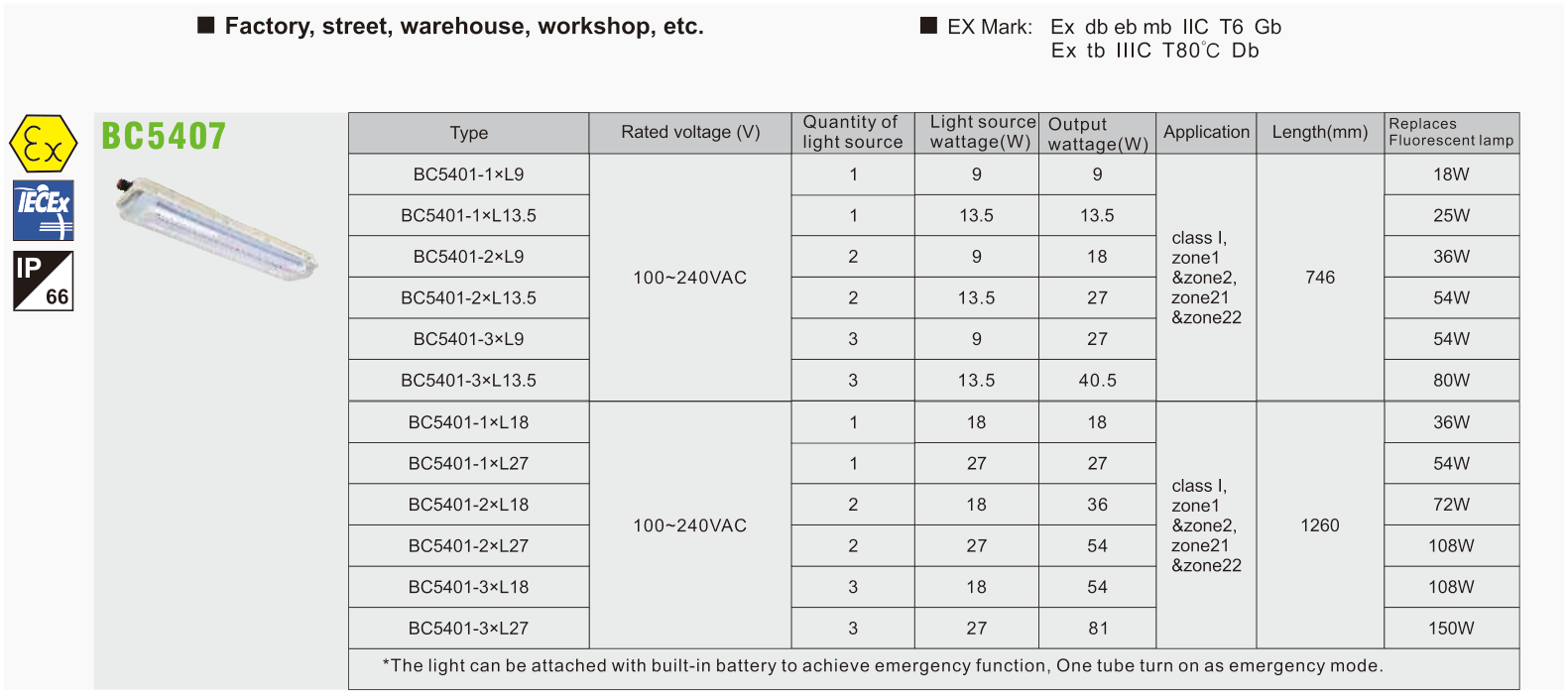

BC5407
| Product type | Explosion-Proof Linear Light |
|---|---|
| Power options | 9–81 W, depending on configuration |
| Catalogue location | PDF page 3 |
Configuration note: The catalogue heading is BC5407, while table model codes read BC5401. Confirm the ordering code before purchase.
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
The product is suitable for use in factory,street,warehouse, workshop and other places
Characteristics
1. The product is designed as a flameproof, increased safety, and rubber-sealed structure. It consists of an outer shell, a transparent cover, a reflector, a lamp holder and other parts. The outer shell is made of polycarbonate alloy material and has the characteristics of high strength, strong impact resistance, high temperature resistance, and cold resistance.
2. The reflector adopts curved bending, making the beam distribution more reasonable. It is equipped with a preventive circuit for the aging effect and air leakage of the lamp tube, ensuring that the lamp can work normally and is efficient and energy-saving Φ≥ 0.95, with a wide voltage input, can operate normally within the voltage range of 100V to 240V, and can maintain constant power output without affecting the output light efficiency.
3. The lamp body and transparent cover adopt a buckle form, which is more tightly combined. Special sealing strips are used to double seal and provide superior protective performance. The shell is equipped with a well-designed breathing device, which balances the internal and external pressure difference and completely eliminates condensation.
4. The lamp is equipped with travel switch and a cover opening and power outage interlocking device. Emergency devices can be equipped according to user requirements, and when the external power outage occurs, the lighting fixtures will automatically switch to the emergency lighting state.
5. The installation methods of fluorescent lamps include wall type, chain type, suspender type, ceiling type, bent rod type, guardrail type, and flange type, which are suitable for installation in different locations and locations.
6. The wire enters the wiring chamber through the introduction device; Steel pipe wiring; The lighting fixtures are equipped with grounding screws both inside and outside, and users should be reliably grounded when using them.
Technical Specification
| Item | Technical data |
| Input voltage range | 90~264VAC |
| Input frequency | 50/60Hz |
| Light source | Led |
| Wattage of each light source | 9W/ 13.5W/ 18W/ 27W (optional) |
| Quantity of Light source | 1/ 2/ 3 (optional) |
| Anti-corrosion grade | WF2 |
| Ingress protection grade | IP66 |
| CRI | 70/80(optional) |
| Service life | >50000h (Lumen decay<30% of the initial value) |
| CCT | 5000K/3000K/4000K(optional) |
|
Leading-in unarmored cable outer diameter |
φ10~14mm |

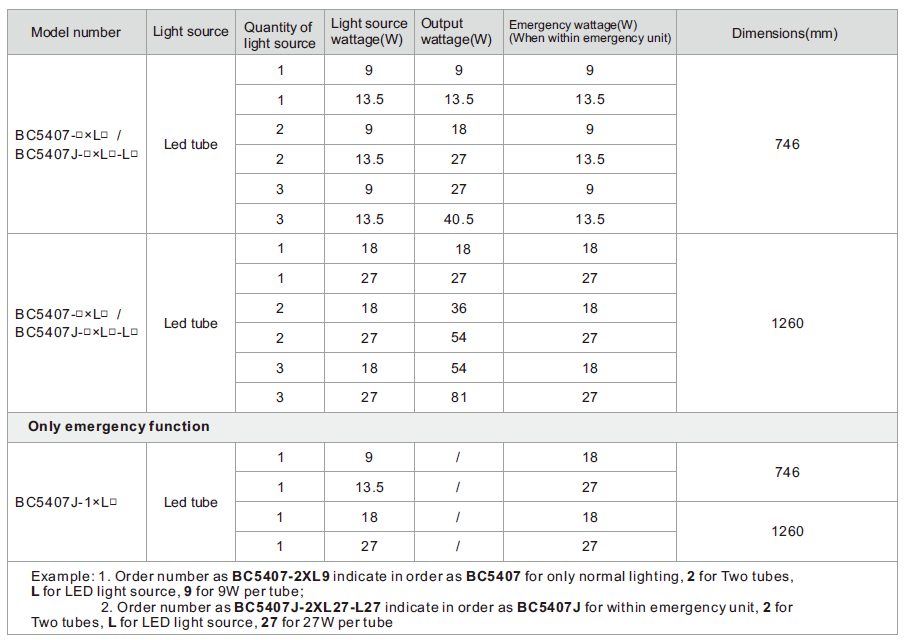

Ordering reference

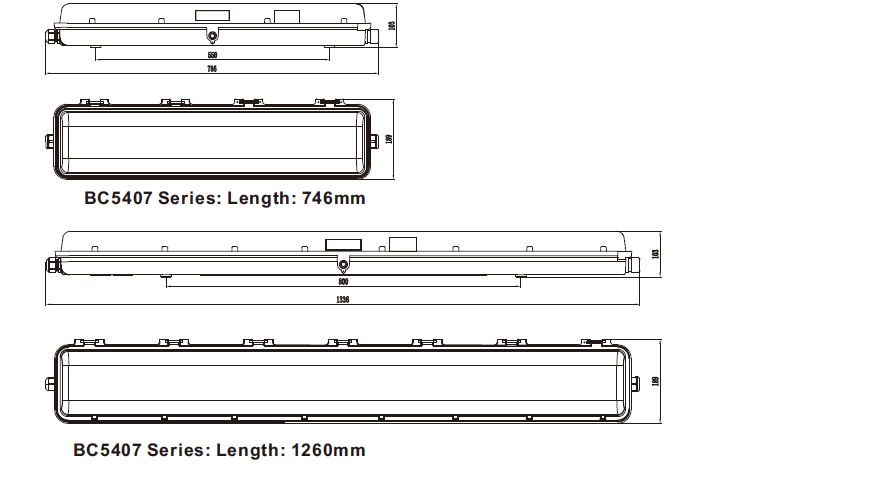

Drawing of dimension (Dimensions in mm)

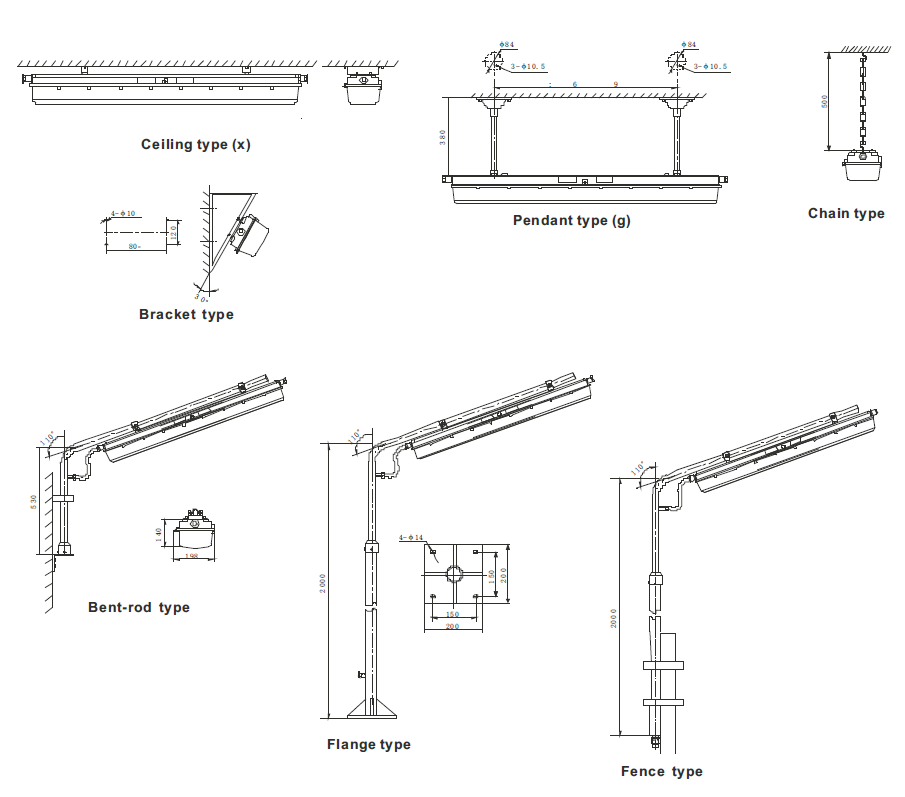

Installation
