ZY8610

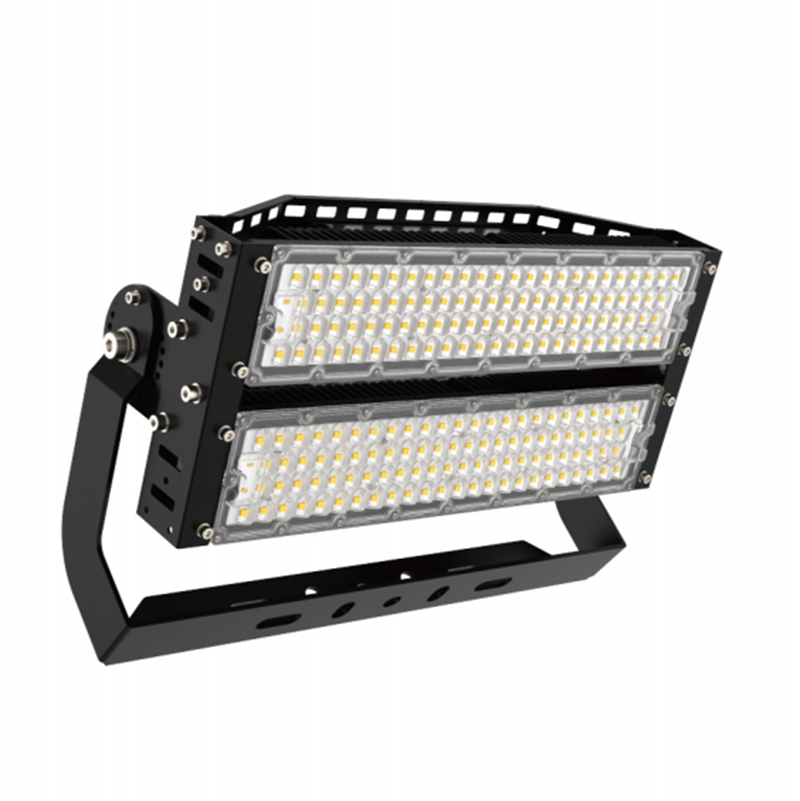

High Power LED Floodlight

This product is widely used in airports, storage yards, squares, turntables, stadiums and other places;

Model
ZY8610
Wattage
500–1500 W
IP Rating
IP66
Request a Product Quote

Confirm the configuration and applicable documentation with our team.

Product configurations & catalogue specifications

Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

ZY8610

ZY8610 — catalogue summary
Product type High-Power LED Floodlight
Power options 500–1500 W
Catalogue location PDF page 9

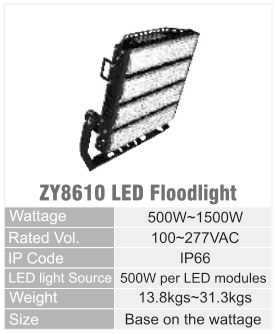

ZY8610 original catalogue specification table; open the full-size image or download the catalogue for configuration details.
Original catalogue extract · ZY8610 · View full-size specifications

Download TORMIN Product Catalogue

Additional product information and earlier documentation

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

This product is widely used in airports, storage yards, squares, turntables, stadiums and other places;


Characteristics

1. The product’s unique back transparent module cooling system improves the light efficiency of the light source and ensures the LED’s life of 100,000 hours.
2. Modular design, according to the brightness requirements of the lighting site, the number of corresponding modules can be flexibly selected.
3. Modular design can solve the difficult maintenance problem of traditional LED lamps. Module replacement can be realized without opening the lamps.
4. The light source adopts the world-famous brand, and the power consumption is only 40% of the metal halide lamp.
5. The color temperature can be selected from 2700K to 6000K according to customer requirements. The normal factory color temperature is 5000K.
6. Adopt international brands, power factor up to 0.98, multiple protections, stability, and life expectancy rank first in the industry.
7. The angle locking device of the lamp can ensure that the lamp will never change the illumination angle under the vibration environment.
8. The shell adopts high-tech surface spraying technology, wearresistant, corrosion-resistant, waterproof and dustproof, suitable for various harsh environments.


Main specification

Item Technical Parameters
Input voltage 90~305VAC
Rated Frequency 50Hz / 60Hz
Rated wattage 500W~1500W
Light source LED
Life time 100,000hrs
CRI Ra 70
CCT 5000K(3000K/ 4000K customized)
