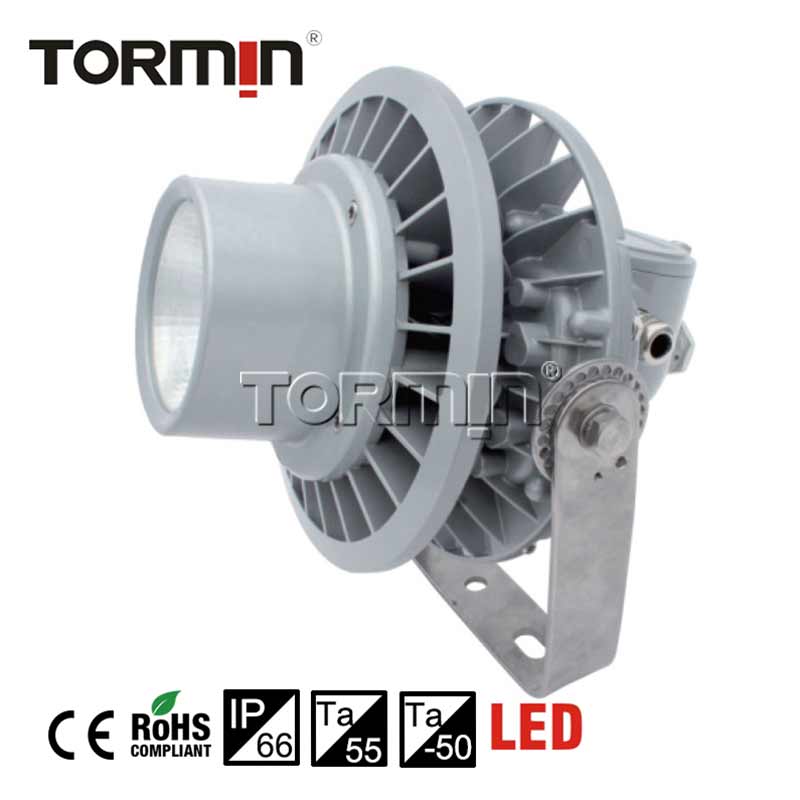

IP66 CE Explosion Proof LED projector lamp Explosion Proof LED spotlight

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

1. Idea to be used in the platform water control room,fire water
pump room and etc.

Characteristics

1. Housing made of special aluminum processing, hardware and
brackets adopt 304 stainless steel, using high-tech anti-corrosion surface
treatment technology, can be long-term suitable for seaside, chlor-alkali,
hydrogen sulfide and other highly corrosive areas.

2. Superconducting aluminum comprehensive self-loop thermal
design, long-term suitable for operating environment with high temperature and
high humidity. Upper and lower ventilation fin structure, no dust.

3. Variety of light distribution, variety of installation types,
same shape, an effective solution to beautify workshop and device platform.

4. The shell is made of high-tech surface treatment technology,
corrosion resistant, waterproof and dust-proof, suitable for harsh environments.

6. It adopts Imported light source, no dark zone in light spot,
no ghosting, the entire lighting efficiency average up to 120lm / W, can save
60% or more on energy than the metal halide lamp.

7. Taiwan Meanwell power supply or same quality power supply,
power factor above 0.98, high reliability and long time service life.

8. Independent side open increased safety wiring chamber, safe
and easy installation and maintenance.

9. It can quickly replace the light source without welding.

10. Intelligent control functions (1 ~ 10VDC, PWM, carrier, DALI
and other Dimming mode).

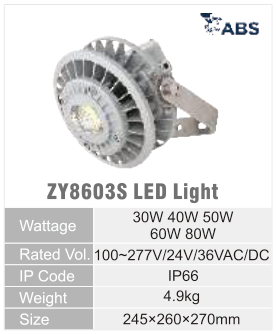

Technical Specification

Ordering
reference

Downloads

• ZY8603S-castlight-non-ex-fixed-professional-light-spec-details-compressed-2020-14-150913
