Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

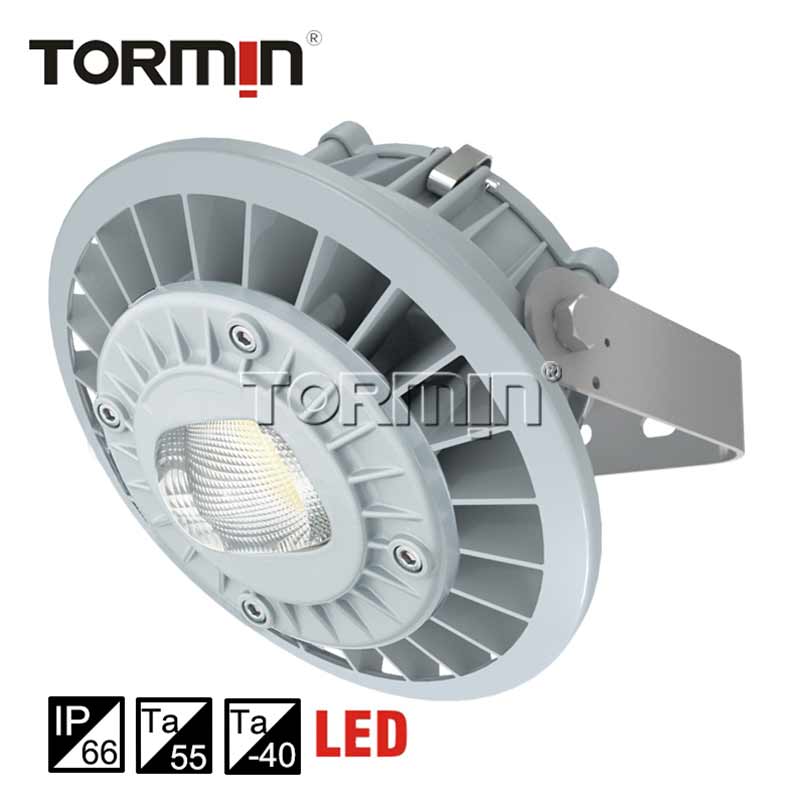

ZY8607S
| Product type | LED Area Light |
|---|---|
| Power options | 30 / 40 / 50 / 60 / 80 W |

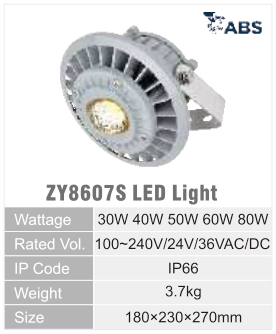

| Catalogue location | PDF page 9 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Suitable for offshore device platform, wharf transport corridors and other low installation height most corrosive environment.
Characteristics
1. Housing made of special aluminum processing, hardware, and brackets adopt 304 stainless steel, using high-tech anti-corrosion surface treatment technology, can be long-term suitable for seaside, chlor-alkali, hydrogen sulfide and other highly corrosive areas.
2. Superconducting aluminum comprehensive self-loop thermal design, long-term suitable for operating environment with high temperature and high humidity. Upper and lower ventilation fin structure, no dust.
3. Variety of light distribution, a variety of installation types, same shape, an effective solution to beautify workshop and device platform.
4. It adopts Imported light source, no dark zone in the light spot, no ghosting, the entire lighting efficiency average up to 120lm / W, can save 60% or more on energy than the Metal Halide Lamp.
5. AC and DC wide voltage constant power supply, can long-term use in voltage instability places.
6. It can quickly replace the light source without welding.
7. Trunnion openings connecting the device can achieve single installation and maintenance work.
8. Frontal area is only 30% of the traditional light fixture, suitable for high altitude and strong wind area.
Technical Specification
|
Item |
Technical specification |
|
Input voltage range |
90~264VAC(30~60W) or 185~264VAC (80W) |
|
18~43VAC; 18~55VDC |
|
|
Input frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
Service life |
50,000h |
|
CRI |
Ra 70(80 Optional) |
|
CCT |
3000K/4000K/5000K |
|
Leading-in cable diameter |
|
|
Dimension |
φ230* 170mm |
|
Net weight |
3Kg |
Ordering reference
|
Ordering reference |
Input Voltage |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
Metal Halide Lamp |
||||||
|
ZY8607S-L30 |
90~264VAC |
30W |
>3500lm |
0.9~1.75 |
3~6m |
70W |
|
ZY8607S-L40 |
40W |
>4500lm |
100W |
|||
|
ZY8607S-L50 |
50W |
>5500lm |
100W~150W |
|||
|
ZY8607S-L60 |
60W |
>6300lm |
6~8m |
150W |
||
|
ZY8607S-L80 |
185~264VAC |
80W | >8600lm |
175W |
||
|
ZY8607S-L25D |
18~43VAC; 18~55VDC |
25W |
>2900lm |
0.7~1.4 |
2~8m |
70W |
|
ZY8607S-L40D |
40W |
>4500lm |
100W |
|||
|
ZY8607S-L60D |
60W |
>6300lm |
150W |
