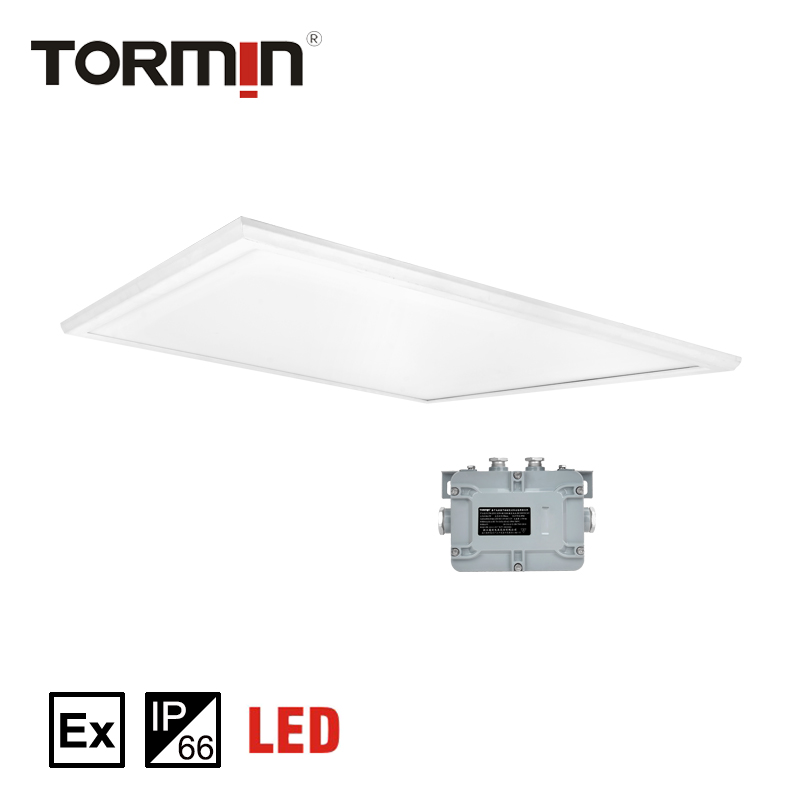

LED Explosion Proof Clean Light

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

1. This product is widely used in the explosive gas environment of raw material, fine chemical industry, electronics microelectronics production,clean room, laboratory, operating room;
2. Suitable for places with high level of corrosion protection against moisture;
3. Gas explosive environment: zone2;
4. Gas explosive environment: llA,IB,IIC;
5. Temperature group:T1~T6.

Characteristics of performance

1. The whole lamp adopts adhesive sealing structure, protection grade up to IP66, can also be used for explosion-proof positive pressure clean room;
2. The frame of the shell is extruded by aluminum alloy, the surface is made of smooth bevel, no dust dead Angle, and the surface is treated with high voltage electrostatic spray;
3. The difusion plate is made of high quality PC material, which is uv resistant and impact resistant. Light guide plate adopts optical PMMA acrylic material, using laser dot, high reflection eficiency, full and effective use of light, uniform illumination within the irradiation range, high light efficiency;
4. International brand LED light source, power consumption is only 50% of fluorescent lamp;
5. The protection level of the light housing is up to IP66,which can effectively resist strong rainstorm;
6. The lamp adopts light source and power split design, which can be quickly installed and replaced without welding on site;
7. Adjustable buckle bracket or ceiling bracket, applicable to the ceiling thickness range of 20~60mm;
8. The key components of power supply are all world famous brands, with high efficiency, stability and long service life.

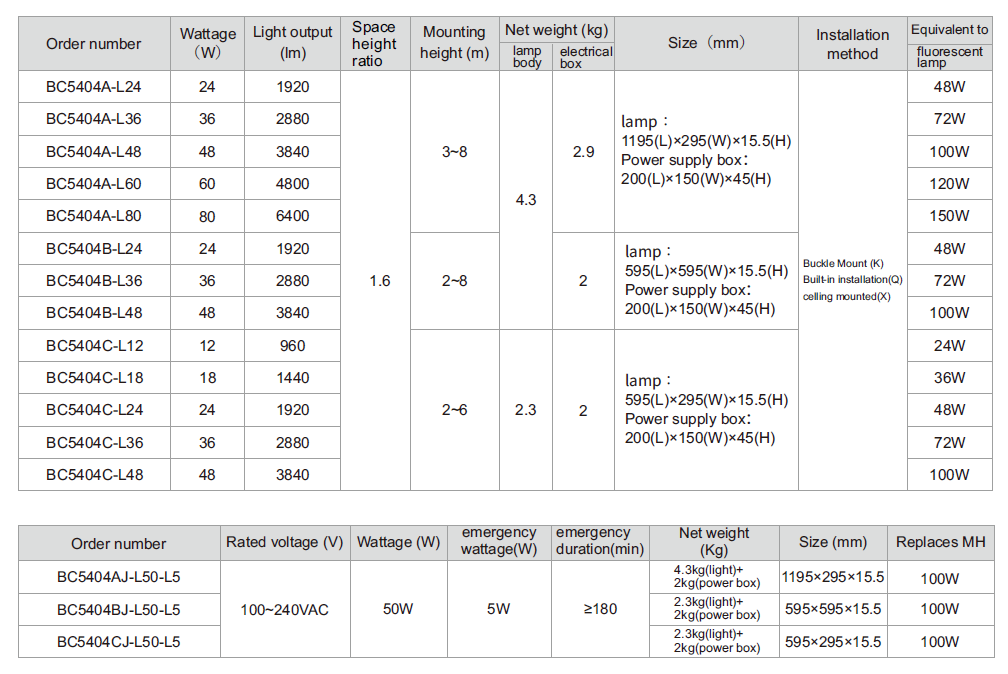

Main specification

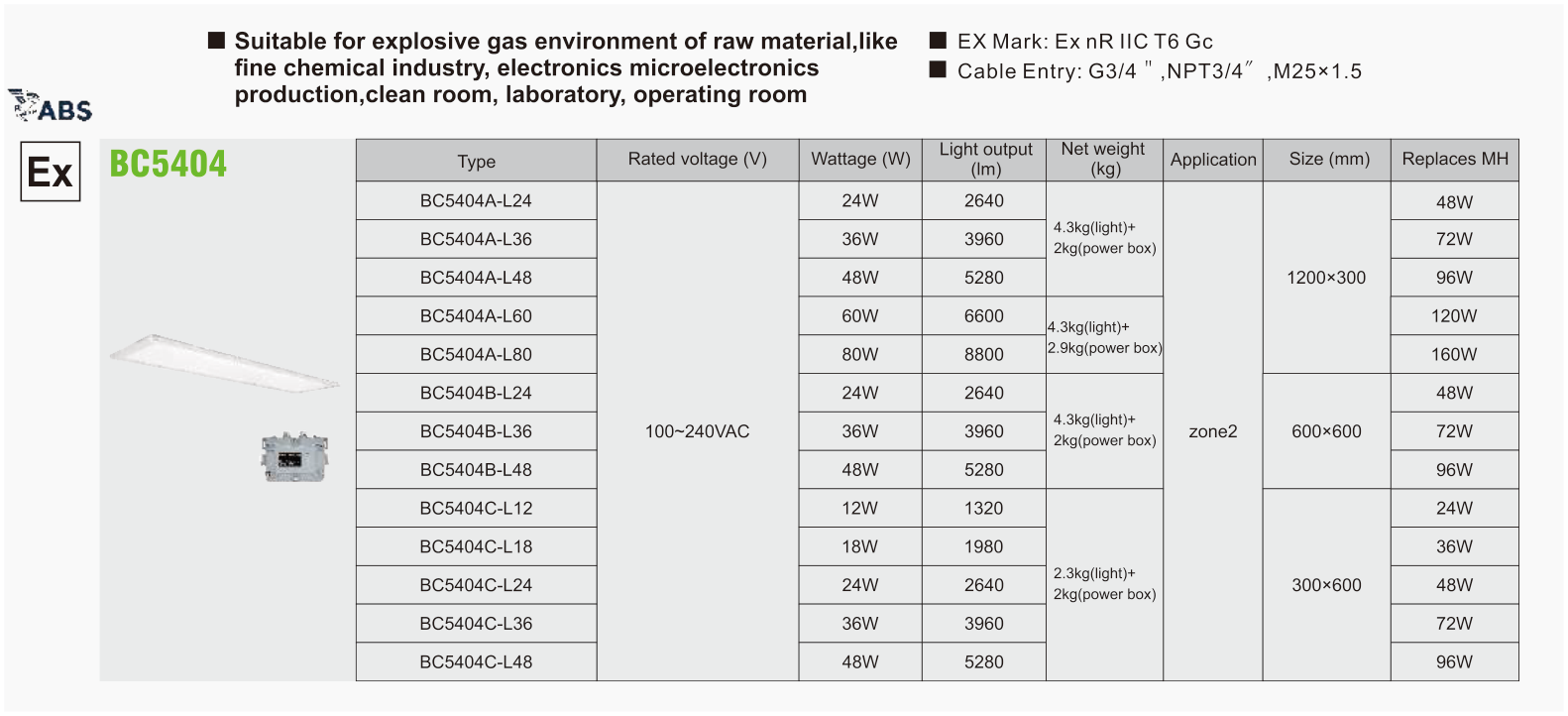

Ordering reference
