Application
1. Mainly used as hazardous area safety exit indication, evacuation direction indication.
2. Harsh environment, moist area.
Characteristics
1. The luminaires use flameproof requirement to ensure that the products work safely in various flammable and explosive places. With automatic
emergency function, emergency work time is up to 2 hours.
2. The optimized structure is designed with a lightweight aluminum alloy casing that is dust-proof, waterproof and impact-resistant, ensuring
maintenance-free lighting and avoiding unsafe factors during maintenance.
3. LED light source, high brightness, long life, high efficiency and energy saving, long life of 50,000 hours. Advanced and reasonable circuit
design, high electrical efficiency and high reliability.
4. The cable is connected to the terminal through the connecting device wiring cavity, and the grounding screw is provided inside and outside the
casing, and the user should be grounded reliably when using the product.
5. It is treated with high-tech surface electrostatic spray technology. It is waterproof, dustproof and anti-corrosive. It is reliable and durable and
can be used reliably in harsh environments.
Main Specification
|
Input Voltage |
90–264VAC |
|
Frequency |
50Hz / 60Hz |
|
Rated Wattage |
Normal≤3W; Emergency≤1W |
|
Emergency Duration |
>120min |
|
Screw Thread of Cable entry |
G3/4″ |
|
Leading-in cable diameter |
φ9mm~φ11mm |
|
Dimension |
374×165×65.5mm |
|
Net Weight |
3.3kgs |

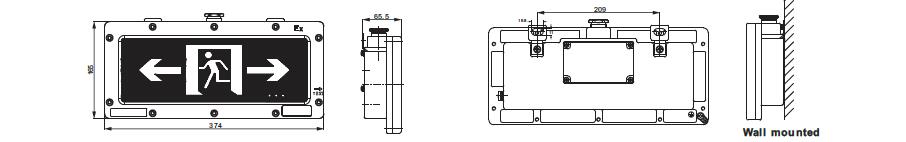

Drawing of dimension (Dimensions in mm)
