Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

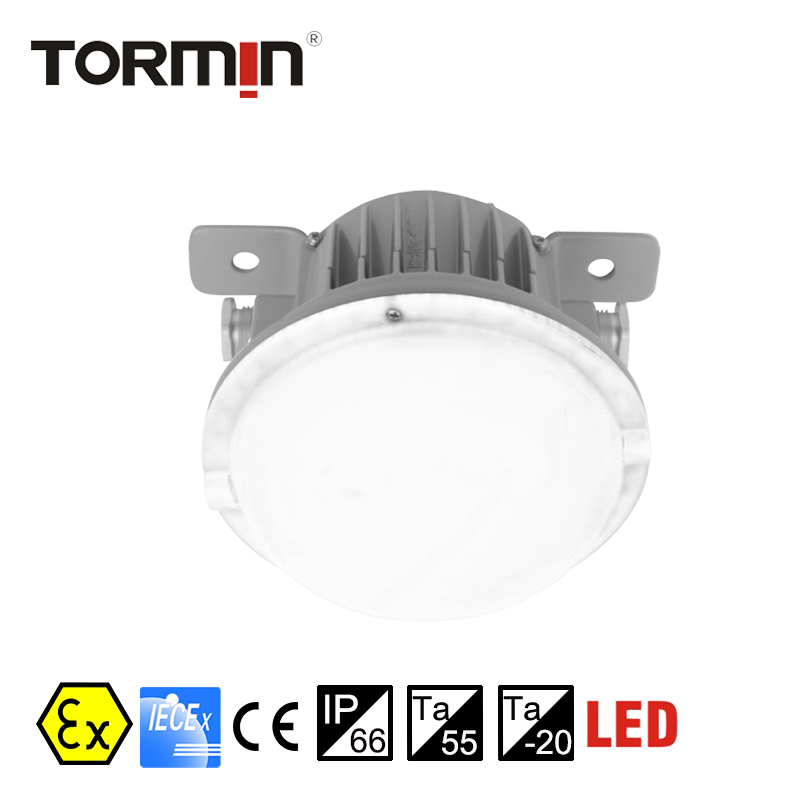

BC9200
| Product type | Explosion-Proof Low Bay Light |
|---|---|
| Power options | 6 / 12 / 15 / 20 W |

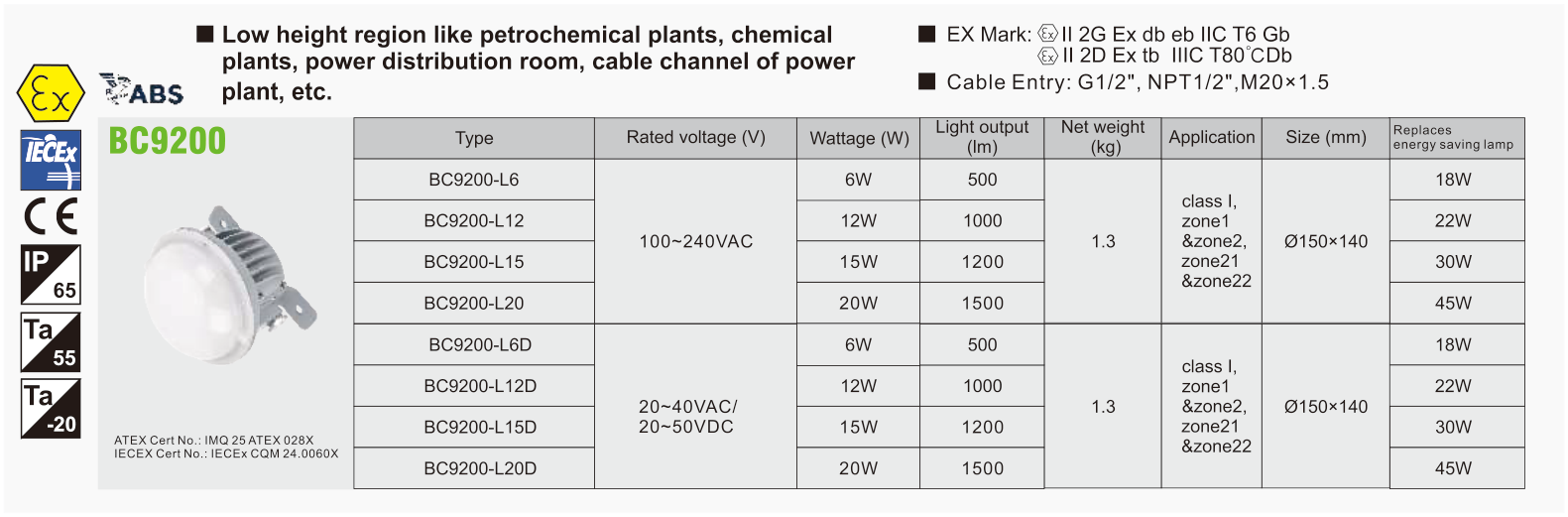

| Catalogue location | PDF page 3 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. This product is widely used in small control rooms, operation rooms, mezzanines, hallways, door lintels, grooves, sampling ports, material ports, tank bottoms and other narrow spaces;
2. Applicable to places with high humid corrosion protection levels;
3. Applicable to explosive gas environment Zone 1 and Zone 2, and explosive dust environment Zone 21 and Zone 22;
4. Applicable to IIA, IIB, IIC explosive gas environments and explosive dust environments;
5. Applicable to temperature groups T1~T6.
Characteristics of performance
1. The lamp is small in size and light in weight; it is particularly suitable for lighting in small spaces in various hazardous gas environments;
2. Flexible light output, no glare and blue light hazards, especially suitable for long-term lighting in small spaces where people work;
3. The lamp has an independent wiring cavity, and no wiring box is required during installation, saving time and cost;
4. American Lumileds light source, energy saving is more than 60% compared with metal halide lamps;
5. The protection level of the whole lamp is IP66, which can be used in various indoor and outdoor sand, dust, rain, fog, and sea wave environments for a long time.
Main specification
|
|
|
|
Frequency |
|
|
Rated Wattage |
6W~20W |
|
Light source |
LED |
|
|
5000K (3000K/ 4000K optional) |
|
|
1.2 |
|
|
|
|
Dimension |
|
|
|
1.3Kg |
Ordering reference
|
Ordering Reference |
Light Source |
Rated wattage (W) |
Light output (lm) |
Equivalent to |
|
Energy Saving amp |
||||
|
BC9200-L6 |
LED |
6W |
500 |
18W |
|
BC9200-L12 |
LED |
12W |
1,000 |
22W |
|
BC9200-L15 |
LED |
15W |
1,800 |
28W |
|
BC9200-L20 |
LED |
20W |
2,400 |
42W |
