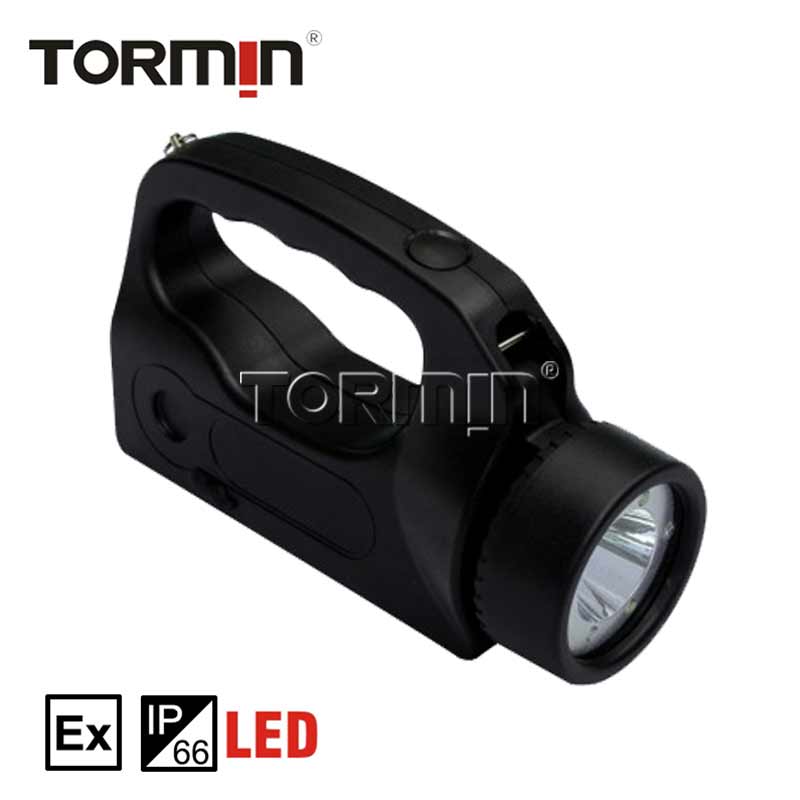

BW6210

LED Explosion Proof Multifunction Searchlight

It is widely used as mobile lighting in the power station, oil filed, chemical industry, fire fighting, police, military and some other flammable and explosive or high stress environment.

Model
BW6210
Wattage
1 W
IP Rating
IP66
Request a Product Quote

Confirm the configuration and applicable documentation with our team.

Product configurations & catalogue specifications

Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

BW6210

BW6210 — catalogue summary
Product type Explosion-Proof Searchlight
Power options 1 W
Catalogue location PDF page 8

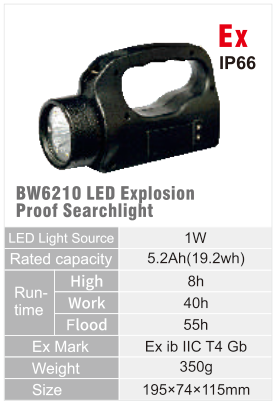

BW6210 original catalogue specification table; open the full-size image or download the catalogue for configuration details.
Original catalogue extract · BW6210 · View full-size specifications

Download TORMIN Product Catalogue

Additional product information and earlier documentation

Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.

Application

It is widely used as mobile lighting in the power station, oil filed, chemical industry, fire fighting, police, military and some other flammable and explosive or high stress environment.


Characteristics

1. It adopt CREE LED light source with high luminous efficiency, 100,000 hours

service life. Powered by rechargeable lithium battery, no memory effect, low discharge rate and environment friendly.

2. Press the button for 2 seconds, the lamp will switch to flood beam mode which runtime can reach 55 hours.

3. Equipped with magnetic base on the bottom, available adsorb to all kinds of iron material equipment

4. The head of the searchlight is adjustable, within 120°according to the operator requirement.

5. Small size and light weight, easy to carry.

6. Light mode: High intensity light and low intensity light are switchable.

7. Battery status indication and lower battery warning function. Operator can check the battery status at any time.

8. The searchlight design has a large size handle and large button switch, easy to operate even with gloved hands.

9. It is made of PC material, high strength body, have a good impact resistant performance. The searchlight is sealed to IP66.


Main specification

Specification

Unit

BW6210

Rated Voltage

VDC

3.7

Charging Voltage

VAC

100-240

Rated Capacity

mAh

5200

Light Source

Luminous flux

lm

190

Average Service Life

h

100,000

Continuous

Runtime

High

h

8

Low

h

40

Floodlight

h

55

Recharge Time

h

810

Battery Recharge Cycle

Times

1 000

Net Weight

Kg

0.35

Dimension

mm

193x74x115
