Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

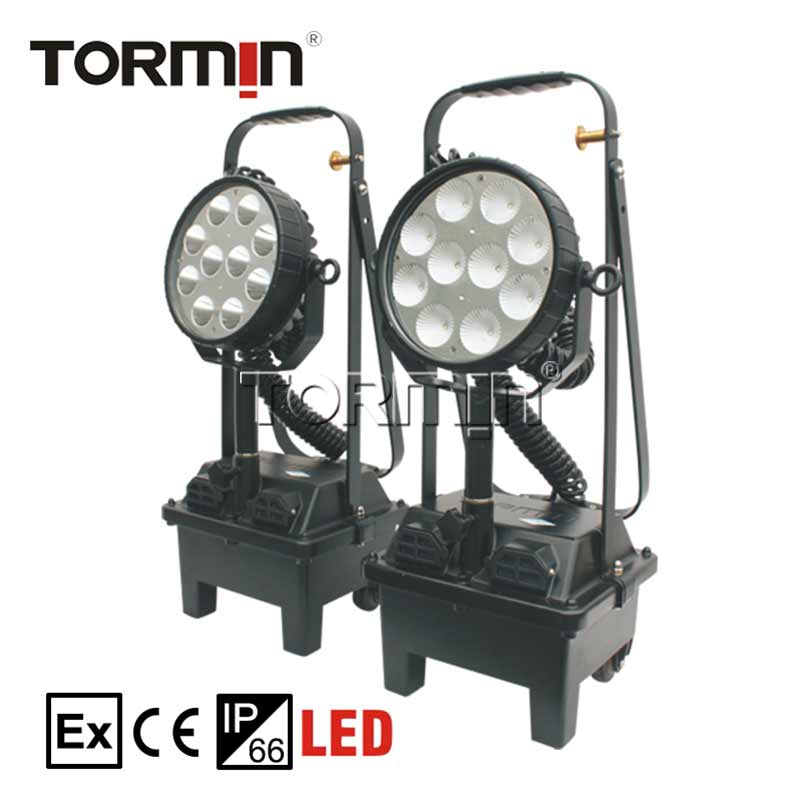

BW3210
| Product type | Explosion-Proof Work Light |
|---|---|
| Power options | 30 W |
| Catalogue location | PDF page 8 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
This product is widely used as mobile lighting for all kinds of night work tasks, repairing, inspection and accident relief etc.
Characteristics
1. Spot light beam or Flood light beam is available according to the application.
2. Safe and reliable: flame proof type of protection. Suitable to be used in various flammable and explosive environment.
3. Efficient&Energy-saving: It adopts CREE LED light source, high intensity, and 100,000 hours service life. It has battery level indication function. Operator can check the energy left at any time.
4. Waterproof & Durability: The housing is made of aluminium alloy, insure the unit enable to stand the strong impact. It is sealed to IP66 preventing the ingress of dust and water. Suitable to be used in all kinds of harsh environment.
5. Flexible & Convenient : The lamp head has 360°rotation and 135°tilt.
6. The extendable pole is optional, with 1.2 to 1.7 meters extendable height. The wheels on the bottom make the transportation more easy.
7. Intelligent charging : The charger is controlled by the chip . It protect against over-charging, over discharge and short circuit. When battery is fully charged.
8. It will switch to trickle charging automatically.
Main specification
| Specification | Unit | BW3210-2° | BW3210-60° | |
| Rated voltage | V | 24 | ||
| Rated capacity | Ah | 12 | ||
| Rated power | W | 30 | ||
| Light output (high/low) | lm | 2300/1600 | ||
| Average service life | h | 100,000 | ||
| Continuous runtime (high / low) | h | 12/24 | ||
| Recharge time | h | 12 | ||
| Effective beam distance | m | 800 | 150 | |
| Service life of battery | Recycled | ≈1,000 | ||
| Dimension | L×W×H | mm | 255X250X610 | |
| Net weight | kg | 14 | ||
