Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

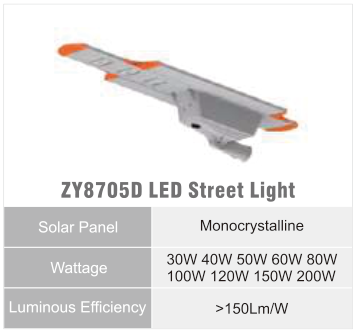

ZY8705D
| Product type | Solar LED Street Light |
|---|---|
| Power options | 30–200 W |
| Catalogue location | PDF page 9 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
This product is widely used in main roads, secondary roads,
branch lines, factory roads, small parks, courtyards, auxiliary roads,
pedestrian passages and other areas inside and outside the factory.
Characteristics
Using high efficiency 5050 leds, more than 150lm/w.
Adopting high efficiency monocrystalline silicon solar panel, conversion
rate is more than 21%.Special plug connector wiring, tool free and
waterproof, anti-wrong connection function.
Grade A LiFePo4 battery, capacity is more than 80% after 2000 cycles.
PWM and MPPT solar charger, intelligent to control the dimming by
PIR/Motion sensor and timer.
Horizontal or vertical pole installation, mounted angle is adjustable
Double waterproof design, protection grade lP66.
Tool free maintenance, battery box can be opened and easy to replace
Main Specification
| Item | Technical Parameter |
| LED Brand | San’an/Bridgelux Chip 5050 led |
| Light Distribution | II-S, II-M, III-M |
| CCT | 2700K~6500K |
| Charge Time | 6 Hours |
| Working Time | 5-7 Days(Auto Control) |
| Protection Grade | IP66 |
| Luminous Efficiency | >150Lm/W |
| Operating Temperature | -20℃ to 65℃ |
| Material | Aluminum |
