Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

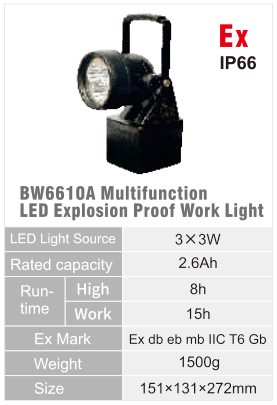

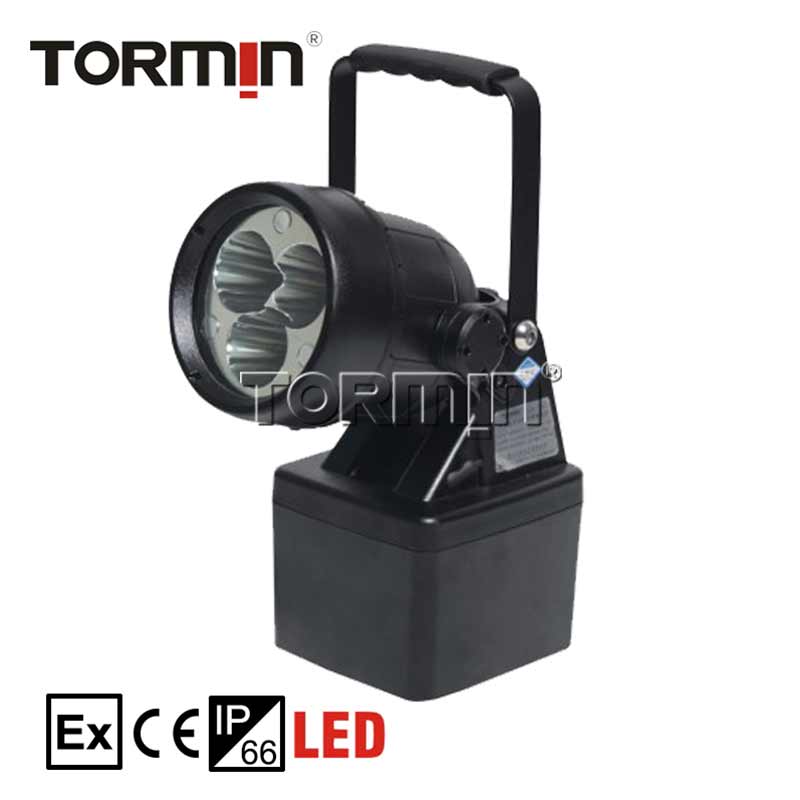

BW6610A
| Product type | Explosion-Proof Work Light |
|---|---|
| Power options | 3 × 3 W |
| Catalogue location | PDF page 8 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. This product is ideal for use in patrol,
inspection, repairing and other night work tasks in explosive and flammable
atmosphere.
Characteristics
1. Flame proof type of protection, approved for safe
use in potentially explosive gas, vapour and mist atmospheres. The head of the
searchlight can give 135°vertical tilt so that operator can adjust the light to
the desired location.
2. Small size, light weight, easy to carry. Explosion
proof desk lamp is portable, beside the magnetic base on the bottom, making the
lamp adsorb to all kinds of iron material equipment.
3. The housing is made of imported PC material, drop
resistant to 1 meter.
4. Explosion proof hand lamp is sealed to IP66,
suitable to be used in all kinds of high stress environment.
5. Adopts CREE LED light source with high light
efficacy and 100,000 hours service life. Use of the latest safety increased
lithium-ion battery technology improves reliability and environment friendly.
6. This product has battery status indication and low
battery warning function, operator can check the battery status at any time.
Towards the end of discharge, the beam flashes off repeatedly, warning
recharging is required.
7. The charger is controlled by intelligent chip, with
various protection functions.
Main specification
|
Specification |
Unit |
Values |
|
|
Rated Voltage |
V |
22.2 |
|
|
Rated Power |
W |
3X3W |
|
|
Rated Capacity |
mAh |
2600 |
|
|
Light |
lm |
810/ 465 |
|
|
Effective Range |
m |
600 |
|
|
Continuous |
High |
h |
8 |
|
Low |
15 |
||
|
Recharge Time |
h |
6 |
|
|
Effective Beam |
m |
100000 |
|
|
Service Life Of |
Recycled |
≈1000 |
|
|
Dimension |
mm |
151X 131X 272 |
|
|
Net weight |
Kg |
1.5 |
|
