Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

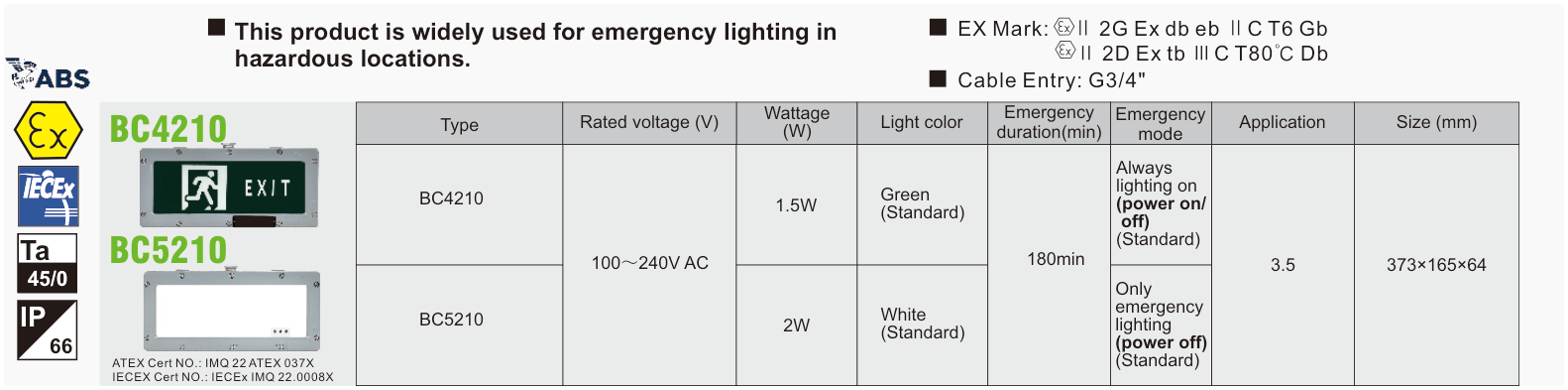

BC4210 / BC5210
| Product type | Explosion-Proof Exit and Emergency Lights |
|---|---|
| Power options | 1.5 W exit / 2 W emergency |
| Catalogue location | PDF page 7 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. It is suitable for hazardous locations in Zone 1 and Zone 2 containing explosive mixtures of Class II C, T1-T6 groups of combustible gas or steam and air, and hazardous locations containing inflammable dust in Zone 21 and Zone 22.
2. Explosion-proof emergency light has the characteristics of small size, light weight, and easy installation. It is widely used in petroleum, chemical, dock, port, aerospace, aviation, military, processing and other places.
Characteristics
1. The luminaires use flameproof requirement to ensure that the products work safely in various flammable and explosive places. With automatic emergency function, emergency work time is up to 3 hours.
2. The optimized structure is designed with a lightweight aluminum alloy casing that is dust-proof, waterproof and impact-resistant, ensuring maintenance-free lighting and avoiding unsafe factors during maintenance.
3. LED light source, high brightness, long life, high efficiency and energy saving. Advanced and reasonable circuit design, high electrical efficiency and high reliability.
4. The cable is connected to the terminal through the connecting device wiring cavity, and the grounding screw is provided inside and outside the casing, and the user should be grounded reliably when using the product.
5. It is treated with high-tech surface electrostatic spray technology. It is waterproof, dustproof and anti-corrosive. It is reliable and durable and can be used reliably in harsh environments.
6. Exit Sign could be customized with PVC Sticker on the Milk white glass surface with extra cost. It is inevitable that the color of the sticker will be different from the design format.
Main specification
|
Specification |
Unit |
Values |
|
|
Rated Voltage |
V |
100~240V AC |
|
|
Rated Power |
W |
1.5W |
|
|
Emergency time |
(min) |
180min |
|
|
Efficiency |
(lm/W) |
> 90 |
|
|
Lighting Color |
/ |
Green (White customized) |
|
|
Color rendering index |
Ra |
>70 |
|
|
Ingress protection |
/ |
IP66 |
|
|
Factor |
/ |
>0.8 |
|
| Total harmonic distortion (THD) | / | >15% | |
|
Highest surface temperature (℃)
|
/ | <80 | |
| Leading-in cable entry | / | G3/4“* 1nos, suitable for unarmored cable outer diameter φ9~φ11mm | |
