Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

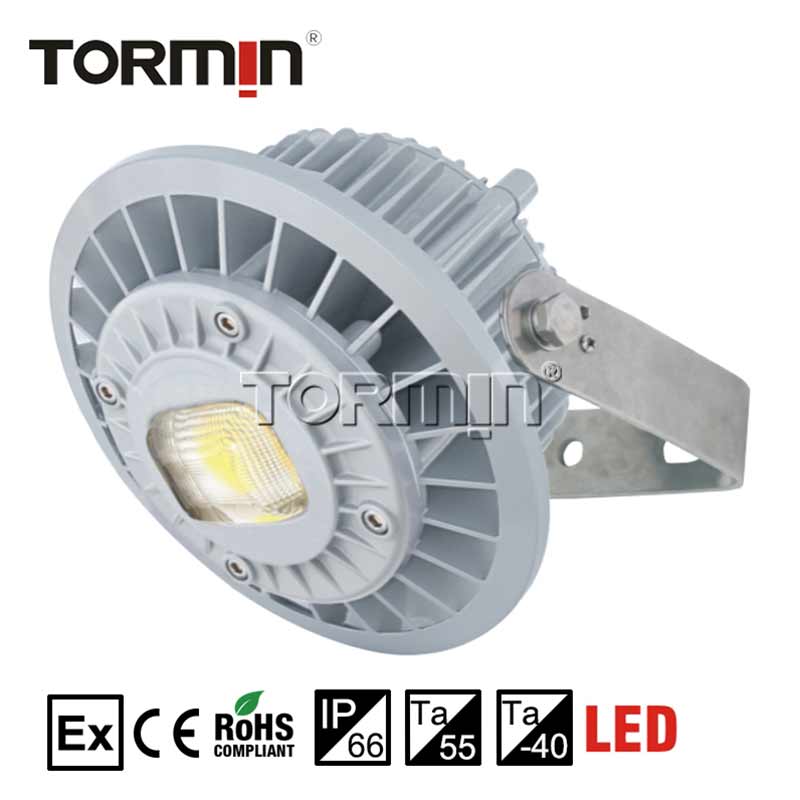

BC9308P / BC9308S
| Product type | Explosion-Proof LED Area Light |
|---|---|
| Power options | 30 / 40 / 50 / 60 / 80 W |
| Catalogue location | PDF page 4 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Suitable for oil drilling, refining platform, chemical
petrol factory, pharmaceutical factory, polishing factory, etc.
2. Gas explosive environment: Group IIA, IIB, IIC.
Characteristics
1. It is made using special aluminum housing, all
exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion
surface treatment technology, it is suitable for long-term highly corrosive
environment of offshore oil platforms, oil drilling platform, chlor-alkali,
vulcanization cyanide, etc.
2. A full range of high conductivity material
accelerate convection cooling structure, effective guarantee long-term use in
high temperature environments.
3. Variety of light distribution and installation
types depend on one lamp design, an effective solution to beautify workshop and
device platform.
4. Optoelectronic integrated technology，no dark spot, no ghosting, energy-saving is 60% more
than Metal Halide Lamp.
5. AC-DC wide voltage and constant power driver,
can be long-term used in voltage instability places.
6. Quick replace light source without welding
7. Trunnion openings connecting means, single
installation and maintenance work can be achieved.
8. Windward area is only 30% of the traditional lamp,
suitable for high-altitude winds area.
Technical Specification
|
Item |
Technical |
|
Input voltage range |
90~264VAC(30~60W) or 185~264VAC (80W) |
|
18~43VAC; 18~55VDC (low) |
|
|
Input frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
Service life |
50,000h |
|
CRI |
Ra 70 ( 80 Optional) |
|
CCT |
3000K/4000K/5000K |
|
Screw Thread |
G3/4″, NPT3/4″, M25* 1.5, M20*1.5 |
|
Leading-in cable diameter |
φ10mm~φ14mm |
|
Dimension |
170* 230* 270mm |
|
Net weight |
3.7Kg |
Ordering
reference
|
Ordering reference |
Input voltage range |
Wattage |
Light output |
Space height ratio |
Mounting height |
Equivalent to |
|
High Pressure Mercury Lamp |
||||||
|
BC9308S-L30 |
90~264VAC |
30W |
>3400lm |
1.25/ 1.75 |
70W |
|
|
BC9308S-L40 |
40W |
>4500lm |
100W |
|||
|
BC9308S-L50 |
50W |
>5500lm |
>100W |
|||
| BC9308S-L60 |
60W |
>6300lm |
150W |
|||
|
BC9308S-L80 |
185~264VAC | 80W | >8600lm |
175W |
||
|
BC9308S-L30L |
24VAC /DC; 36VAC /DC |
30W |
>3500lm |
1.25/ 1.75 |
2~6m |
70W |
|
BC9308S-L40L |
40W |
>4500lm |
100W |
|||
|
BC9308S-L50L |
50W |
>6200lm |
>100W |
|||
|
BC9308S-L60L |
>7300lm |
150W |
||||
|
BC9308S-L70L |
70W |
>7900lm |
150W~175W |
