Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

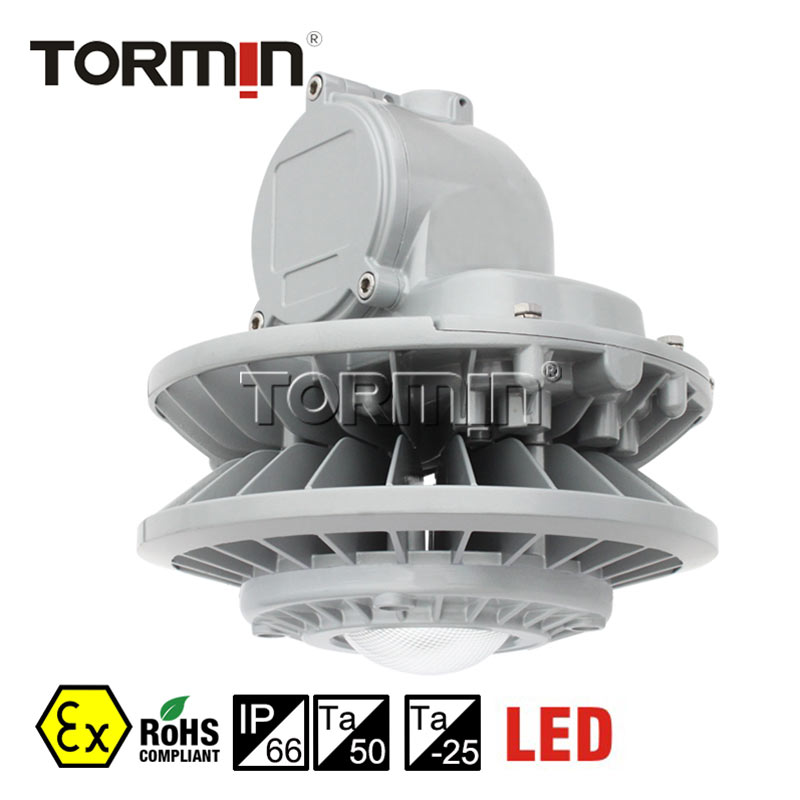

BC9306AP / BP / AS / BS
| Product type | Explosion-Proof Emergency Area Light |
|---|---|
| Power options | 40 W normal; 15 / 25 W emergency |
| Catalogue location | PDF page 7 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Ideal to be used in the oilfield, chemical
industry, steel industry, power, port, Petroleum etc.
2. Gas explosive environment: Group IIA, IIB, IIC.
Characteristics
1. It is made using a special aluminum housing, highly corrosive environment of offshore platforms, chlor-alkali, vulcanization cyanide a full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
2. Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.
3. The shell is made of high-tech surface coating technology, corrosion resistant, waterproof and dustproof, suitable for harsh environments.
4. Imported light, high luminous efficiency, low-light failure, reliability ranking first in the same light source.
5. Taiwan Meanwell power supply or same quality power supply, power factor above 0.98, high reliability and long time Life time .
6. Independent wiring chamber, safe and easy installation and maintenance.
7. All exposed fasteners adopt 304 stainless steel.
8. Type A: usually can be used for 24 hours lighting lamps and lanterns to use, when the accident to provide emergency lighting;
Type B: accident to provide emergency lighting.
9. Type A / Type B with manual emergency function.
Main specification
|
Item |
Technical |
|
Type |
BC9306AP/ |
|
Input voltage range |
90~264VAC |
|
Input frequency |
50Hz/ 60Hz |
|
Light source |
LED |
|
CRI(Ra) |
70(80 Optional) |
|
50,000h |
|
|
CCT |
5000K(3000K//4000K Optional) |
|
Time of charging |
>6h |
|
Rated Capacity |
2.6Ah/ 14.8V |
|
Cable entry |
|
|
Leading-in cable diameter |
|
|
Terminals |
Multi-strand wire：≤2.5mm2 |
|
Single-strand wire：≤4mm2 |
|
|
Dimension |
φ230* 270mm |
|
Net weight |
4.2 Kg |

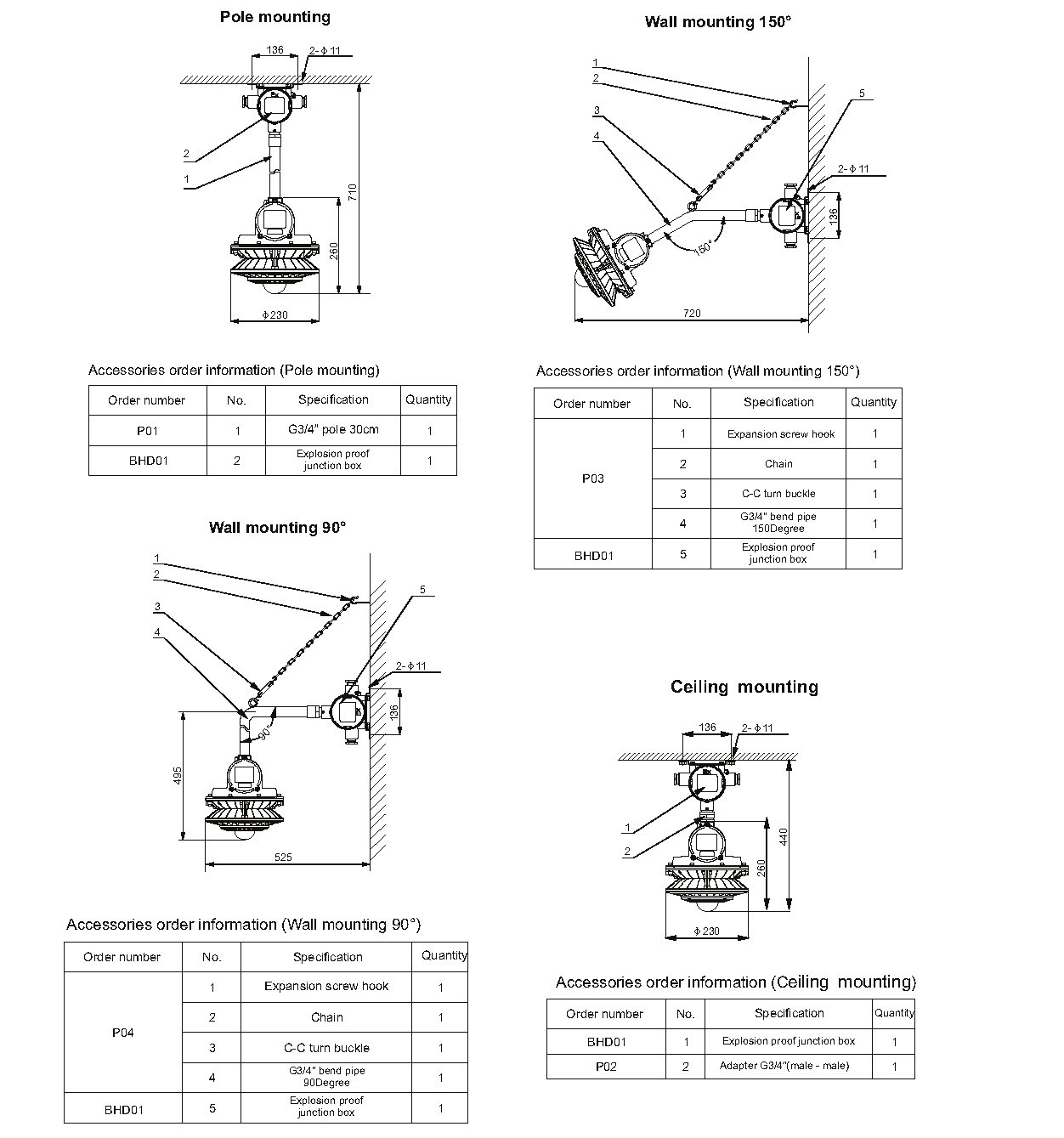

Drawing of dimension (Dimensions in mm)
Ordering reference
|
Ordering reference |
Wattage |
Emergency wattage |
Light output |
Emergency duration |
Space height ratio |
Equivalent to |
|
High Pressure Mercury Lamp |
||||||
|
BC9306AP-L40-15 |
40W |
15W |
1800 lm |
120min |
0.9~1.75 |
100W/ 35W |
|
BC9306AP-L40-25 |
40W |
25W |
3300 lm |
70 min |
100W/ 70W |
|
|
Auto Emergency |
||||||
|
BC9306BP-L15 |
/ |
15W |
1800 lm |
120 min |
0.9~1.75 |
/ 35W |
|
BC9306BP-L25 |
/ |
25W |
3300 lm |
70 min |
/ 70W |
|
