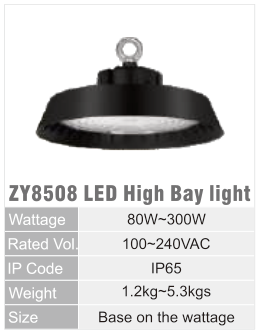

Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.
ZY8508
| Product type | LED High Bay Light |
|---|---|
| Power options | 80–300 W |
| Catalogue location | PDF page 9 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
Characteristics
1. The lamp adopts international brand light source, the spot has no dark area, high luminous efficiency, long life, the whole light efficiency is greater than 115lm/W, and the energy saving of metal
halide lamps is more than 60%.
2. Die-cast aluminum heat dissipation shell, fin structure UFO product, convection from upper and lower vents, fast heat dissipation, reliable life.
3. The powder spraying protection process of the heat dissipation base plate ensures the lowest thermal resistance between thealuminum base plate and the radiator and maximizes the heat
dissipation effect.
4. AC and DC wide voltage constant power power supply, power factor up to 0.98.
5. The concave design of the light-emitting surface effectively avoids glare.
Main specification
| Item | Technical Parameters | |
| Input voltage (V) | 90~305VAC | |
| Rated Frequency | 50Hz / 60Hz | |
| Rated wattage | 80W~ 300W | |
| Light source | LED | |
| Life time | 100,000hrs | |
| CRI | Ra 70 | |
| CCT | 5000K (3000K/ 4000Koptional) | |
