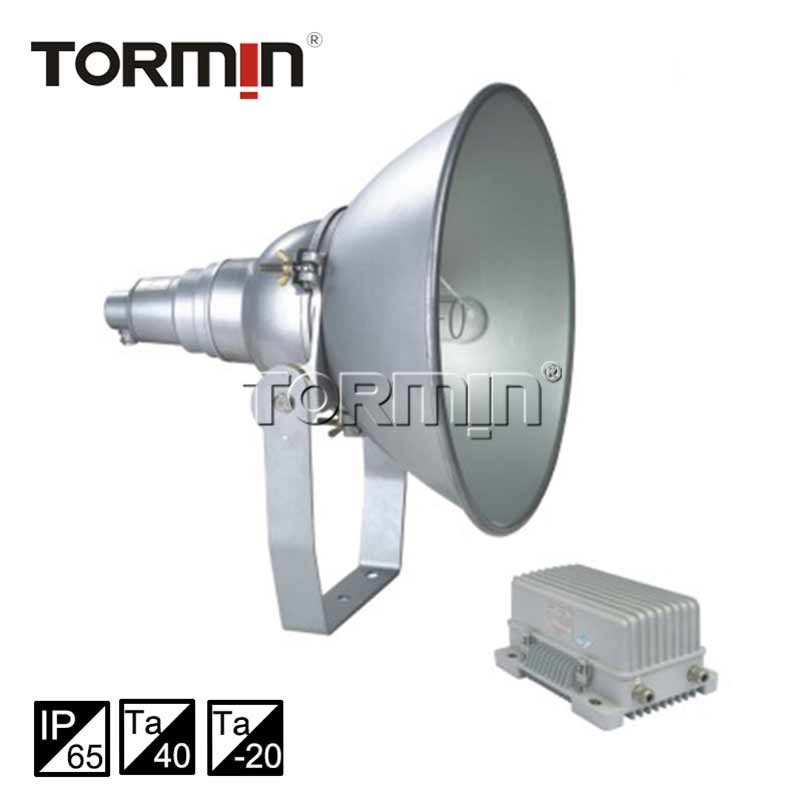

Application
Suitable for plant, medium and large factories, railway, bridge and other places for cast lighting.
Characteristics
1. It adopts OSRAM brand light source, reliable performance;
2. Housing has a compact breathing apparatus, balance internal and external pressure, completely eliminate the condensation phenomena;
3. It adopts inside and outside anti-earthquake design, effective solve lamp fall off, lamp life shortened, stent fracture and other issues due to strong vibrations;
4. Electrical box with a unique cooling structure, using thermal heat transfer mode accelerates heat transfer, effectively guarantee efficient cooling ballast, which can effectively guarantee electrical service life;
5. Electrical box adopts snap-on installation, you can hand open electrical box, making installation and repair more convenient and faster;
6. It adopts lightweight alloys and high-tech spray technology, the shell does not rust, no corrosion;
7. Use trim new technology to ensure shell integrity is good, reliable seal, waterproof and dustproof.
Main specification
|
Input Voltage |
220VAC 50Hz |
|
|
Ingress Protection |
IP65 |
|
|
Life time of light source (h) |
12,000 |
|
|
Light source |
Metal Halide Lamp |
|
|
Leading-in cable diameter |
Φ8mm –Φ10mm |
|
|
Dimension |
1000W(ZY8300) |
Lamp Φ526x615mm |
|
Ballast 325x215x150mm |
||
|
250W/ 400W (ZY8310) |
Lamp Φ420x445mm |
|
|
Ballast 325x215x150mm |
||
|
Net Weight |
1000W(ZY8300) |
Lamp: 7.5Kg |
|
Ballast: 15kg |
||
|
250W/ 400W (ZY8310) |
Lamp 7.2Kg |
|
|
Lamp 8Kg |
||
Ordering reference
|
Model number |
Rated Wattage (W) |
Light Output (lm) |
Space height ratio |
Mounting height (m) |
|
ZY8300-J1000 |
1,000 |
65000 |
1.3 |
10~35m |
|
ZY8310-J250 |
250 |
24,500 |
6~10m |
|
|
ZY8310-J400 |
400 |
35,300 |
